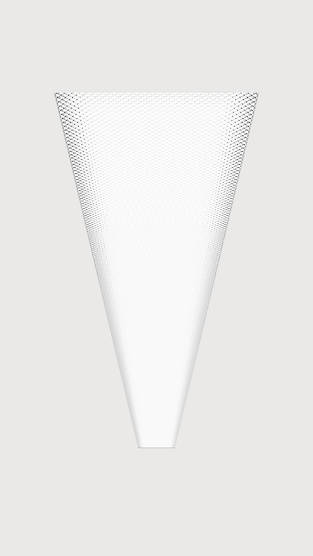

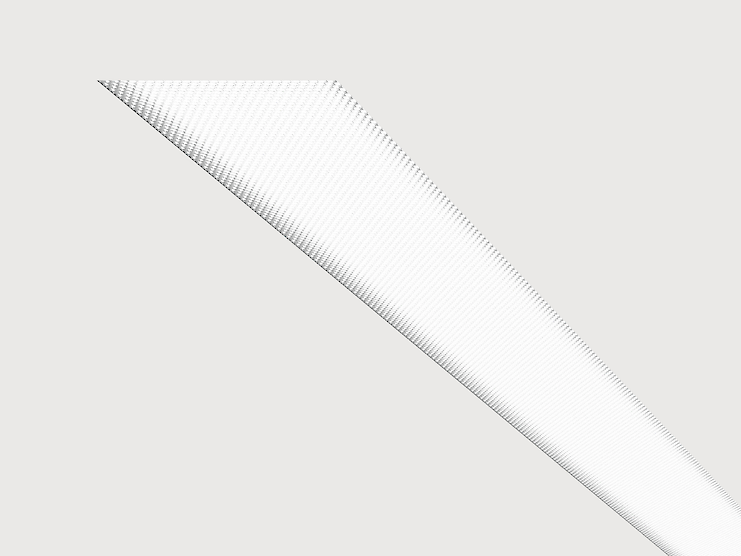

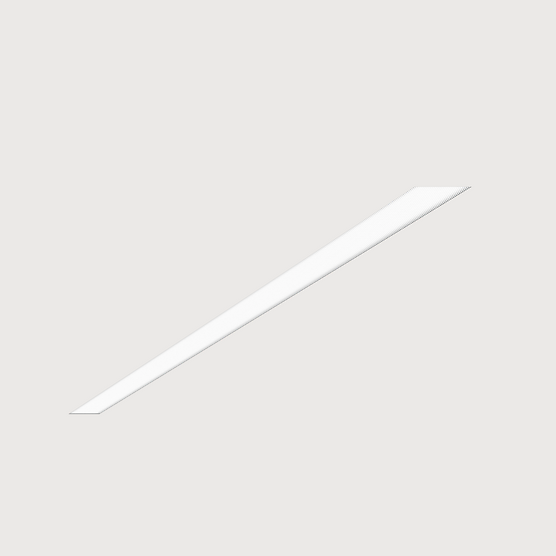

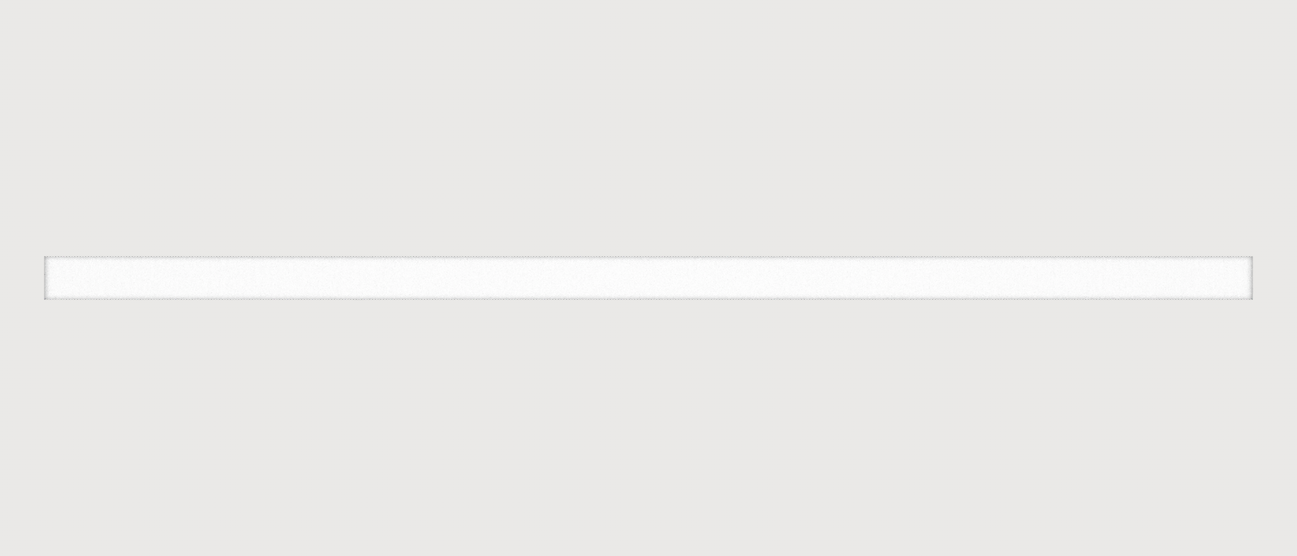

Recessed mounted LED luminaire for frameless installation in plasterboard ceilings. Direct only light distribution. Light channel made of 55mm wide aluminium profile. Bespoke lengths possible. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Optional mounting frame for installation with shadow gap, alternative mounting brackets for installation without shadow gap. Mounting frame or luminaire profile available in advance for mounting; other luminaire components can be mounted at different times. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.
Product adjustments
90° Corner Opal/Microprismatic
Midpin-Downlight XD 310lm/5W/Ø21mm
Midpin Spotlight XM 770lm/10W/Ø40mm
3-Phase Track
Multisensor
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Installation | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LM3GEL-840M-Lxxxx-B | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 4000K | Dimmable (DALI) | Installation brackets (set) incl | 1270lm/m | 16W/m | |
| LM3GEE-830H-Lxxxx-B | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 3000K | Switchable | Installation brackets (set) incl | 1636lm/m | 22W/m | |
| LM3GEE-840M-Lxxxx-B | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 4000K | Switchable | Installation brackets (set) incl | 1270lm/m | 16W/m | |
| LM3GEL-830M-Lxxxx-B | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 3000K | Dimmable (DALI) | Installation brackets (set) incl | 1187lm/m | 16W/m | |
| LM3GEE-830M-Lxxxx-B | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 3000K | Switchable | Installation brackets (set) incl | 1187lm/m | 16W/m | |
| LM3DEL-840M-L1475-B | Matric-M3 | L=1475mm | Trucircle Polycarbonate Diffuser | Silver Anodised | 4000K | Dimmable (DALI) | Installation brackets (set) incl | 2844lm | 26W | |
| LM3DEE-830H-L1475-B | Matric-M3 | L=1475mm | Trucircle Polycarbonate Diffuser | Silver Anodised | 3000K | Switchable | Installation brackets (set) incl | 3770lm | 37W | |
| LM3DEL-830E-L1182-B | Matric-M3 | L=1182mm | Trucircle Polycarbonate Diffuser | Silver Anodised | 3000K | Dimmable (DALI) | Installation brackets (set) incl | 1574lm | 16W | |
| LM3DEE-840H-L1765-B | Matric-M3 | L=1765mm | Trucircle Polycarbonate Diffuser | Silver Anodised | 4000K | Switchable | Installation brackets (set) incl | 4842lm | 44W | |
| LM3GEE-840H-Lxxxx-F | Matric-M3 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 4000K | Switchable | Installation housing for installation with shadow gap incl | 1750lm/m | 22W/m |
