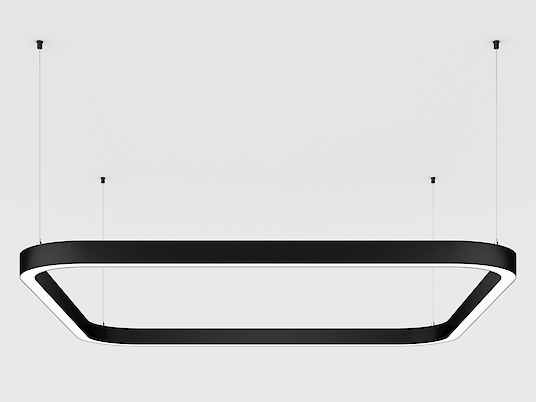

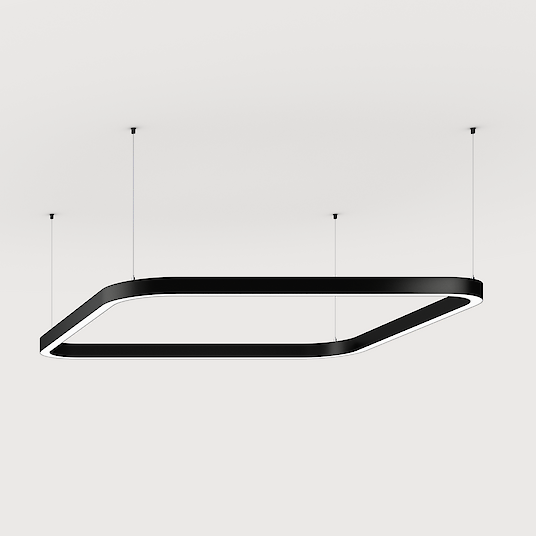

LED pendant luminaire
Direct-indirect or direct-only light distribution. Luminaire body made of 40m wide aluminium profile. As standard available in 3 different sizes. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light with precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable parallel cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of emergency lighting components, Midpin spotlights.
Product adjustments
Midpin Spotlight XP 770lm/10W/Ø40mm
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Snow White
Satin Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| APXCWE-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Snow White | 3000K | Switchable | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCSE-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Radiant Silver | 3000K | Switchable | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCBE-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Jet Black | 3000K | Switchable | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCWE-840E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Snow White | 4000K | Switchable | Parallel susp. (Set) | 7880lm | 70W | ||
| APXCSE-840E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Radiant Silver | 4000K | Switchable | Parallel susp. (Set) | 7880lm | 70W | ||
| APXCBE-840E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Jet Black | 4000K | Switchable | Parallel susp. (Set) | 7880lm | 70W | ||
| APXCWL-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Snow White | 3000K | Dimmable (DALI) | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCSL-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Radiant Silver | 3000K | Dimmable (DALI) | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCBL-830E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Jet Black | 3000K | Dimmable (DALI) | Parallel susp. (Set) | 7368lm | 70W | ||
| APXCWL-840E-Q900-K | Caleo-PX Inverse | Q=900mm | Opal Flex Diffuser | Snow White | 4000K | Dimmable (DALI) | Parallel susp. (Set) | 7880lm | 70W |
