Caleo Neo Y4/X4 | Surface

Rectilinearity with soft contours

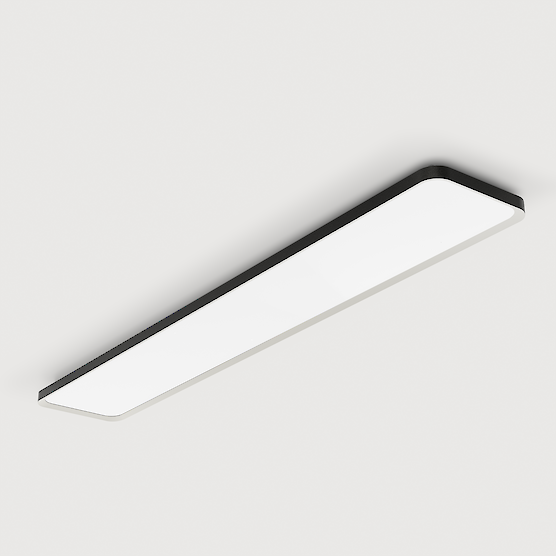

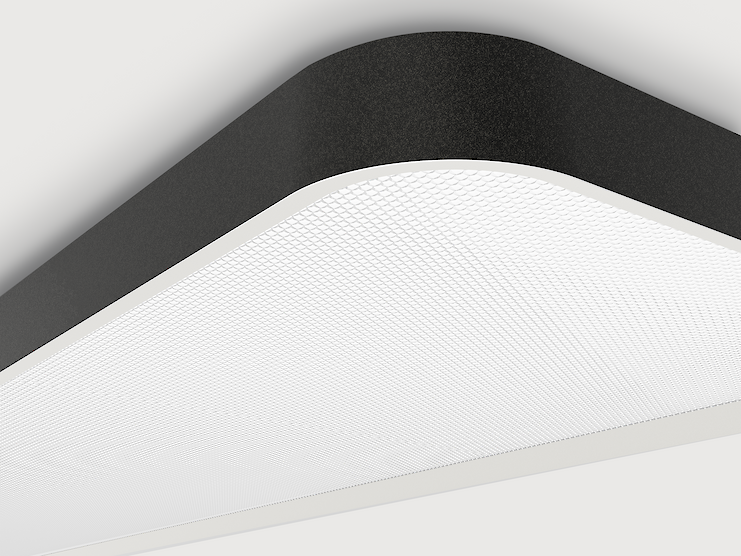

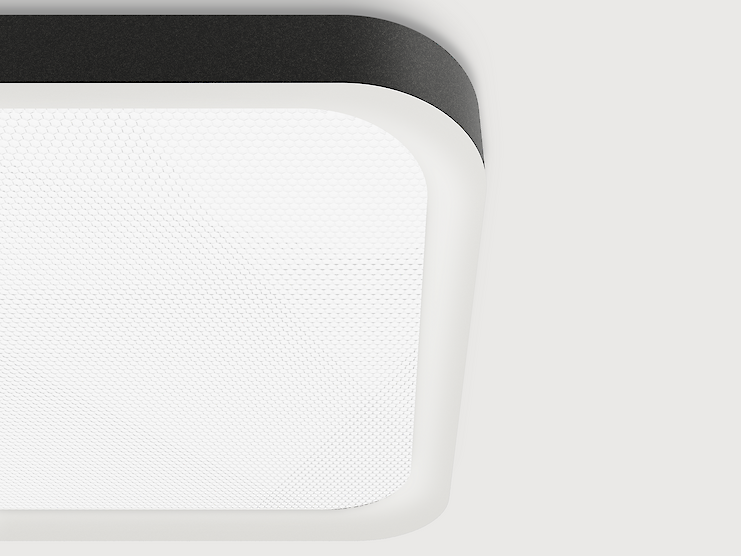

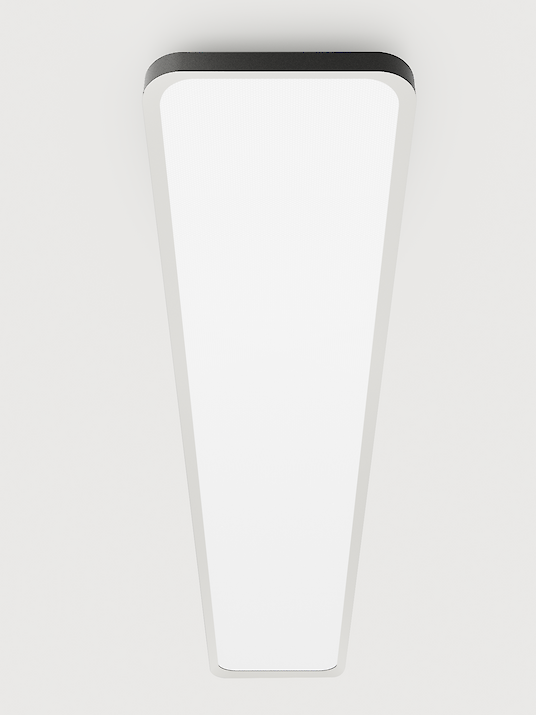

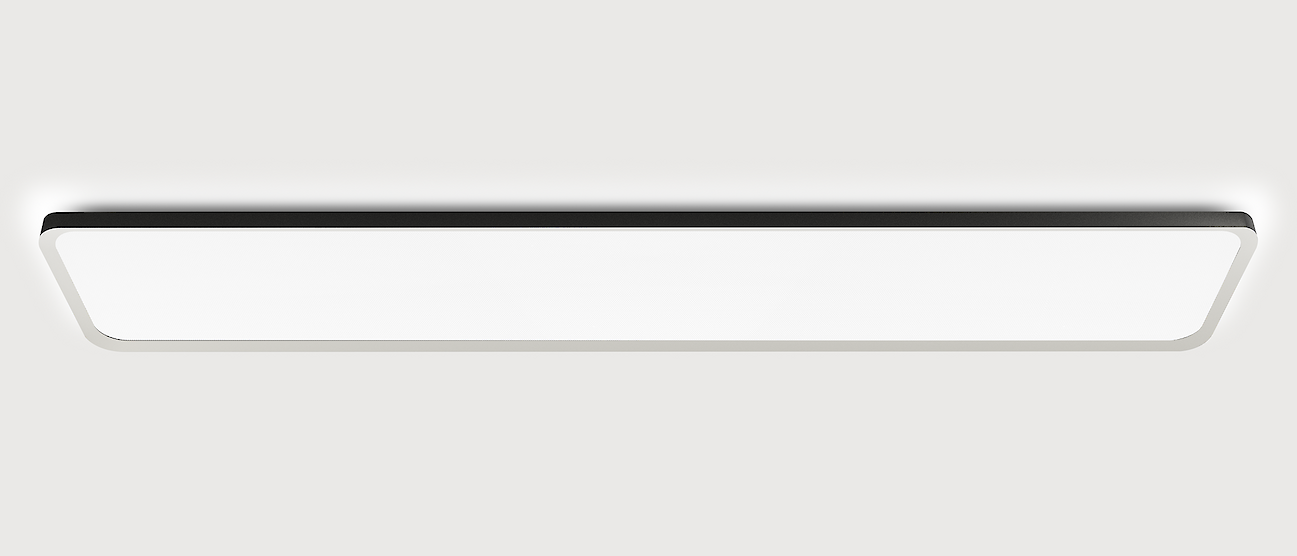

LED pendant luminaire. Direct light distribution and indirect lighting corona or direct only light distribution. Tiered luminaire body made of aluminium profile with 25mm visible trim. Outer housing and inner decor available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.

Product adjustments

Snow White | Snow White

Snow White | Satin Silver

Snow White | Jet Black

Snow White | Satin Gold

Snow White | Anodic Champagne

Snow White | Satin Copper

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Reflector Colour Inside

Apply
Filter
Downloads Length L/Diameter D (mm) Light characteristics Optical system Surface finish Colour temperature Control Current/Power Reflector Colour Inside
L=900mm Direct/indirect light distribution Microprismatic screen Radiant Silver 3000K Dimmable (DALI) High-Power Reflector: Radiant Silver
L=900mm Direct/indirect light distribution Microprismatic screen Radiant Silver 4000K Dimmable (DALI) High-Power Reflector: Radiant Silver
L=900mm Direct/indirect light distribution Opal diffuser Radiant Silver 3000K Switchable High-Power Reflector: Radiant Silver
L=900mm Direct/indirect light distribution Opal diffuser Radiant Silver 4000K Switchable High-Power Reflector: Radiant Silver
L=900mm Direct/indirect light distribution Opal diffuser Radiant Silver 3000K Dimmable (DALI) High-Power Reflector: Radiant Silver
L=900mm Direct/indirect light distribution Opal diffuser Radiant Silver 4000K Dimmable (DALI) High-Power Reflector: Radiant Silver
L=1200mm Direct/indirect light distribution Microprismatic screen Radiant Silver 3000K Switchable Medium-Power Reflector: Radiant Silver
L=1200mm Direct/indirect light distribution Microprismatic screen Radiant Silver 4000K Switchable Medium-Power Reflector: Radiant Silver
L=1200mm Direct/indirect light distribution Microprismatic screen Radiant Silver 3000K Dimmable (DALI) Medium-Power Reflector: Radiant Silver
L=1200mm Direct/indirect light distribution Microprismatic screen Radiant Silver 4000K Dimmable (DALI) Medium-Power Reflector: Radiant Silver
