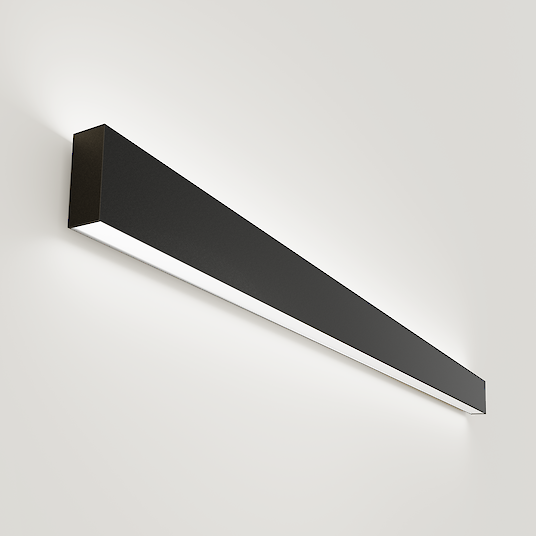

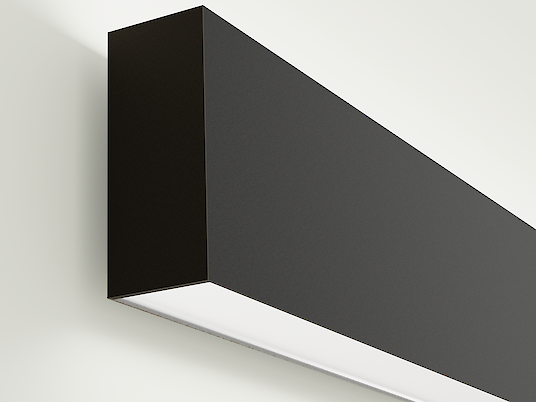

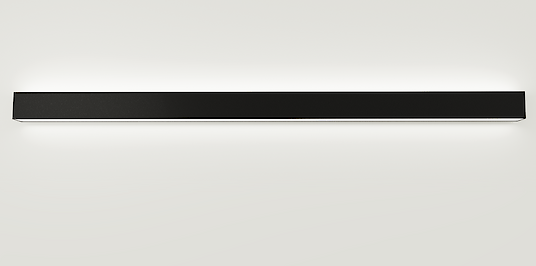

LED surface-mounted luminaire for optional horizontal or vertical wall mounting
Direct-indirect light distribution. Light channel made of aluminium profile. Bespoke lengths are possible. Surface natural anodised or white, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction for workplaces. Opal diffuser made of acrylic glass for general lighting. Asymmetrical optics for uniform illumination into the depth of the room. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of 48V tracks for Midpin, emergency lighting components.
Product adjustments
Spotlights Midpin XM (on request)
90° Corner Opal/Microprismatic
Laser Cut-Out
Snow White
Urban Graphite
Jet Black
Anodic Champagne
Pale Oak
Amber Oak
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Pale Oak
-
Amber Oak
-
Midnight Ebony
-
Real Wood dark
-
Real Wood light
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
-
Wood Collection
The new wood surfaces combine technical precision with natural aesthetics and open up a wide range of possibilities for harmonious integration into architectural interior designs. Available as high-quality real wood veneer or decorative foil with a tactile texture, they offer authentic materiality – from Scandinavian lightness to deep elegance. The wood surfaces are available for the Matric, Liquid Line, Basic and Cubic luminaire families.-
Pale Oak
-
Amber Oak
-
Midnight Ebony
-
Real Wood dark
-
Real Wood light
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| LWXYEL-830H-Lxxxx | Matric-WX | Special length L=xxxxmm | Asymmetrical | Natural Anodised | 3000K | Dimmable (DALI) | 4970lm/m | 42W/m | |
| LWXAEL-840H-Lxxxx | Matric-WX | Special length L=xxxxmm | Microprismatic screen | Natural Anodised | 4000K | Dimmable (DALI) | 5020lm/m | 41W/m | |
| LWXABL-840H-Lxxxx | Matric-WX | Special length L=xxxxmm | Microprismatic screen | Jet Black | 4000K | Dimmable (DALI) | 5020lm/m | 41W/m | |
| LWXOBL-840M-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Jet Black | 4000K | Dimmable (DALI) | 3990lm/m | 32W/m | |
| LWXOWE-830H-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Snow White | 3000K | Switchable | 4941lm/m | 41W/m | |
| LWXOEE-830H-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Natural Anodised | 3000K | Switchable | 4941lm/m | 41W/m | |
| LWXOEE-840M-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Natural Anodised | 4000K | Switchable | 3990lm/m | 32W/m | |
| LWXOBE-840M-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Jet Black | 4000K | Switchable | 3990lm/m | 32W/m | |
| LWXOWL-830M-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | 3850lm/m | 32W/m | |
| LWXOEL-830M-Lxxxx | Matric-WX | Special length L=xxxxmm | Opal diffuser | Natural Anodised | 3000K | Dimmable (DALI) | 3850lm/m | 32W/m |
