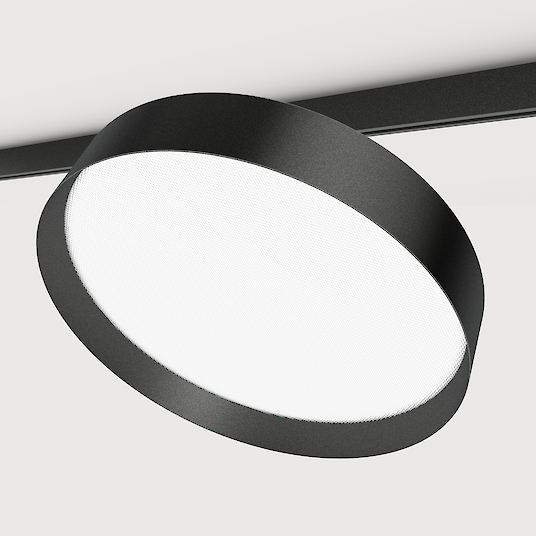

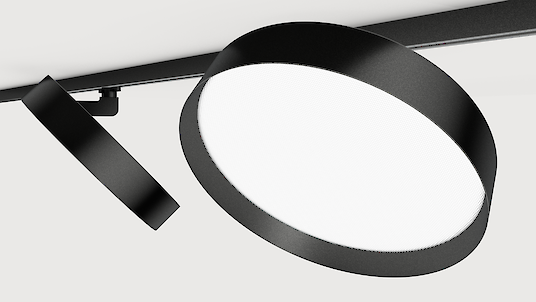

LED spotlight for 3-phase tracks

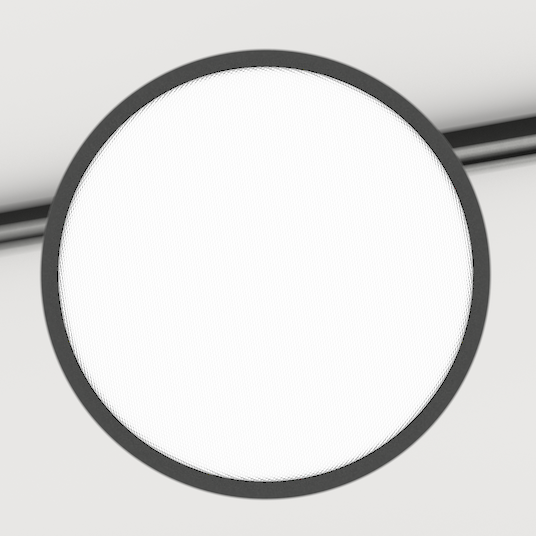

345° rotation and 90° tilt. Luminaire body made of aluminium profile with overall height of 58mm. Outer housing and inner decor available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further colour finishes please see the Lightnet-Surface-Collection or select your RAL of choice. Recessed microprismatic diffuser with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. With integrated driver options of switchable or dimmable (DALI). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. 3-phase track adapter options, EUTRAC or GLOBAL.
Product adjustments
Snow White | Snow White
Radiant Silver | Radiant Silver
Urban Graphite | Urban Graphite
Jet Black | Jet Black
Anodic Champagne | Anodic Champagne
Satin Copper | Satin Copper
Snow White | Satin Copper
Snow White | Satin Gold
Snow White | Jet Black
Anodic Champagne | Jet Black
Jet Black | Satin Gold
Jet Black | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Adaptor | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BC3AWE-830M-D300-WW | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | White adaptor (In-Track Electronic) | Reflector: Snow White | 2741lm | 19W | |
| BC3AWE-830M-D300-WG | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | White adaptor (In-Track Electronic) | Reflector: Satin Gold | 2741lm | 19W | |
| BC3ASE-830M-D300-WA | Basic-C3 | D=300mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | White adaptor (In-Track Electronic) | Reflector: Satin Silver | 2741lm | 19W | |
| BC3ABE-830M-D300-BG | Basic-C3 | D=300mm | Microprismatic screen | Jet Black | 3000K | Switchable | Black adaptor (In-Track Electronic) | Reflector: Satin Gold | 2741lm | 19W | |
| BC3AWL-830M-D300-WW | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | White adaptor (In-Track Electronic) | Reflector: Snow White | 2741lm | 19W | |
| BC3AWL-830M-D300-WG | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | White adaptor (In-Track Electronic) | Reflector: Satin Gold | 2741lm | 19W | |
| BC3ASL-830M-D300-WA | Basic-C3 | D=300mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | White adaptor (In-Track Electronic) | Reflector: Satin Silver | 2741lm | 19W | |
| BC3ABL-830M-D300-BG | Basic-C3 | D=300mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | Black adaptor (In-Track Electronic) | Reflector: Satin Gold | 2741lm | 19W | |
| BC3AWE-827M-D300-WW | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 2700K | Switchable | White adaptor (In-Track Electronic) | Reflector: Snow White | 2741lm | 19W | |
| BC3AWE-827M-D300-WG | Basic-C3 | D=300mm | Microprismatic screen | Snow White | 2700K | Switchable | White adaptor (In-Track Electronic) | Reflector: Satin Gold | 2741lm | 19W |
