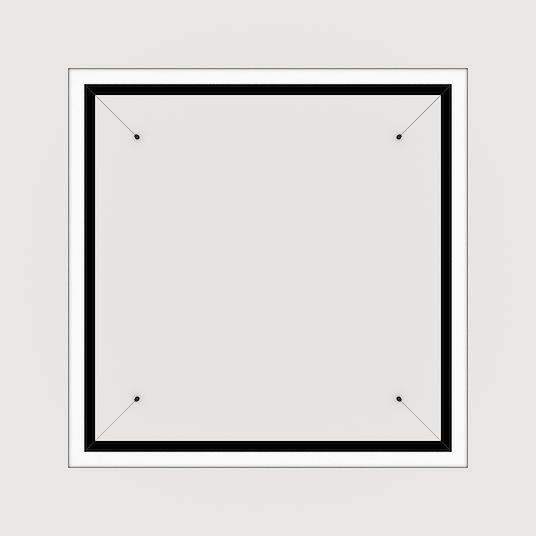

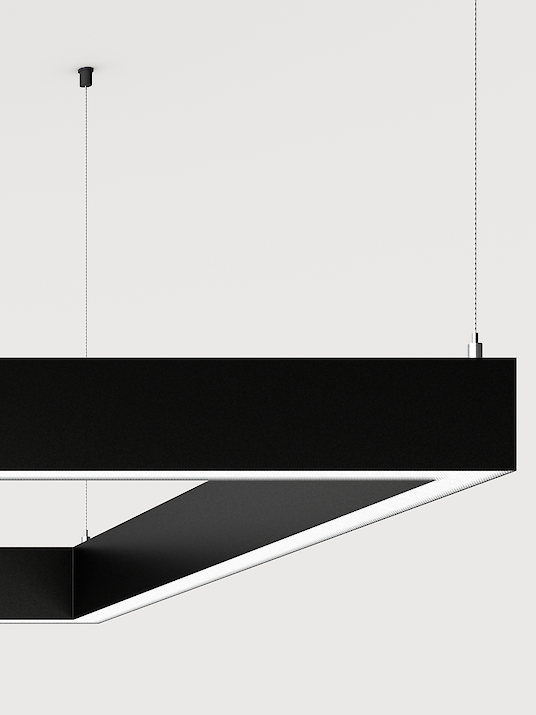

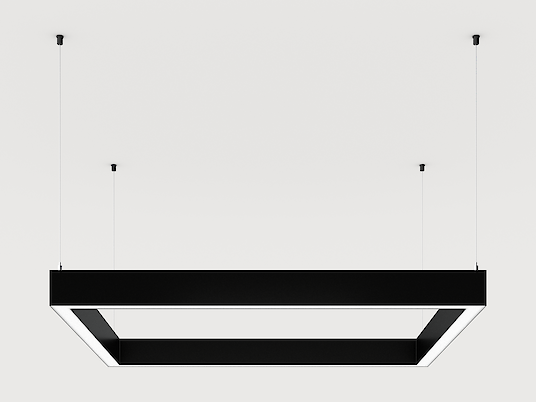

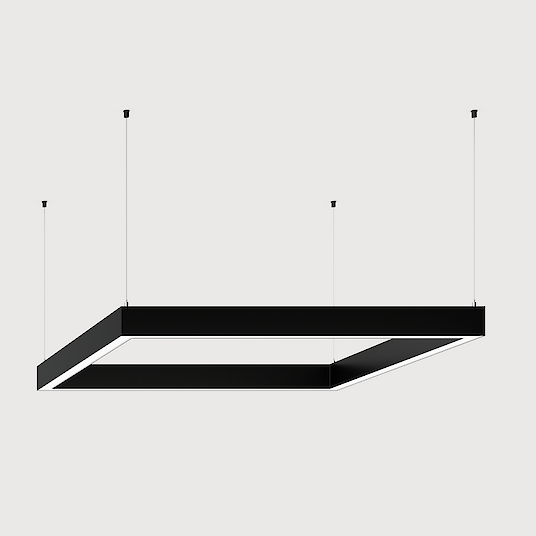

Matric Square GX/RX | System 40mm Suspended

LED pendant luminaire

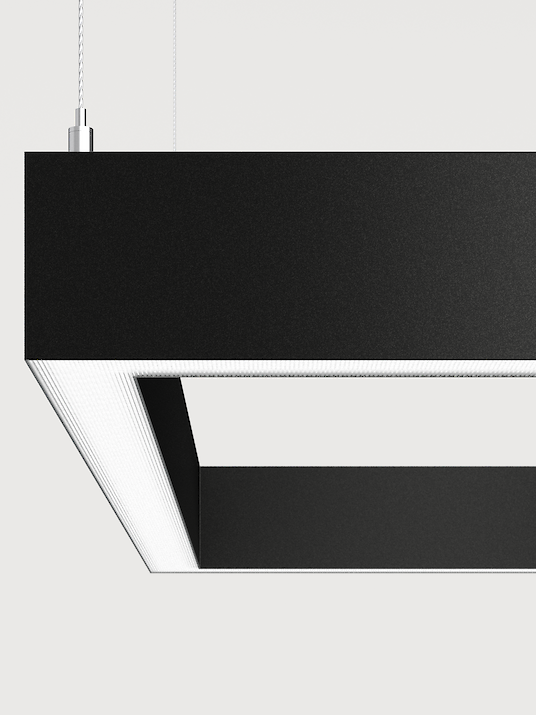

Direct-indirect or direct-only light distribution. Luminaire body made of 40mm wide aluminium profile. Surface silver or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Indirect light with innovative lens technology for wide-angle ceiling illumination. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable parallel cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.

To download area

Product adjustments

Midpin-Downlight XD 770lm/10W/Ø40mm

Midpin Spotlight XM 770lm/10W/Ø40mm

Midpin Spotlight XP 770lm/10W/Ø40mm

48V-Track

Multisensor

Snow White

Radiant Silver

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

Download catalog page and assembly instructions

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Suspension

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Suspension Luminous Flux Power consumption
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBL-840H-Q1494-KG Matric-GX Square Q=1494mm Lens Louvre Jet Black 4000K Dimmable (DALI) Parallel susp. (Set) 23170lm 140W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLSE-830H-Q1494-KA Matric-GX Square Q=1494mm Lens Louvre Radiant Silver 3000K Switchable Parallel susp. (Set) 22359lm 140W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBE-830H-Q1230-KG Matric-GX Square Q=1230mm Lens Louvre Jet Black 3000K Switchable Parallel susp. (Set) 18296lm 117W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLWE-840H-Q965-KW Matric-GX Square Q=965mm Lens Louvre Snow White 4000K Switchable Parallel susp. (Set) 14720lm 87W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBL-840H-Q1230-KG Matric-GX Square Q=1230mm Lens Louvre Jet Black 4000K Dimmable (DALI) Parallel susp. (Set) 18960lm 117W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBE-830H-Q701-KG Matric-GX Square Q=701mm Lens Louvre Jet Black 3000K Switchable Parallel susp. (Set) 10161lm 64W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBE-830H-Q1494-KG Matric-GX Square Q=1494mm Lens Louvre Jet Black 3000K Switchable Parallel susp. (Set) 22359lm 140W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLWL-840H-Q701-KW Matric-GX Square Q=701mm Lens Louvre Snow White 4000K Dimmable (DALI) Parallel susp. (Set) 10530lm 64W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLWE-830H-Q965-KW Matric-GX Square Q=965mm Lens Louvre Snow White 3000K Switchable Parallel susp. (Set) 14205lm 87W
  • PDF
  • LDT
  • DWG
  • IES
  • RFA
  • ULD
  • TXT
  • ROLF
LGXLBL-830H-Q1230-KG Matric-GX Square Q=1230mm Lens Louvre Jet Black 3000K Dimmable (DALI) Parallel susp. (Set) 18296lm 117W
