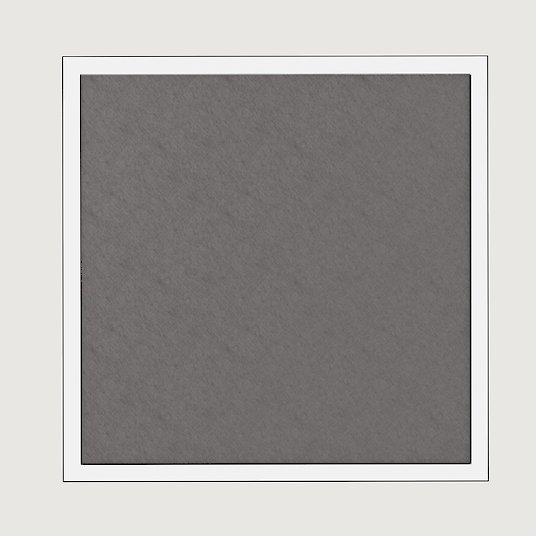

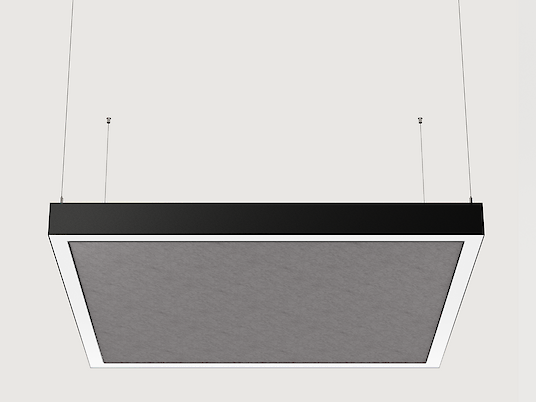

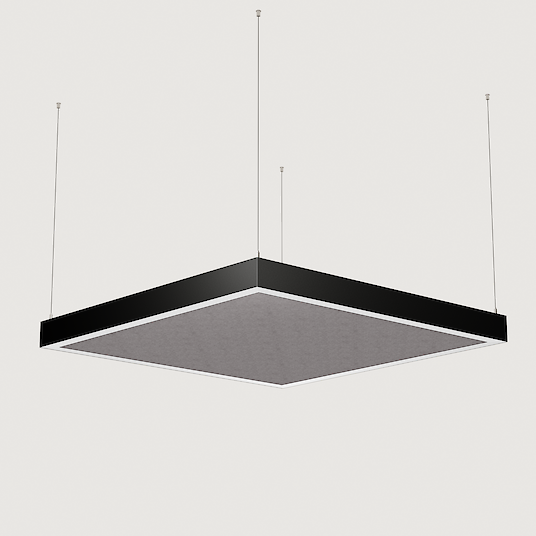

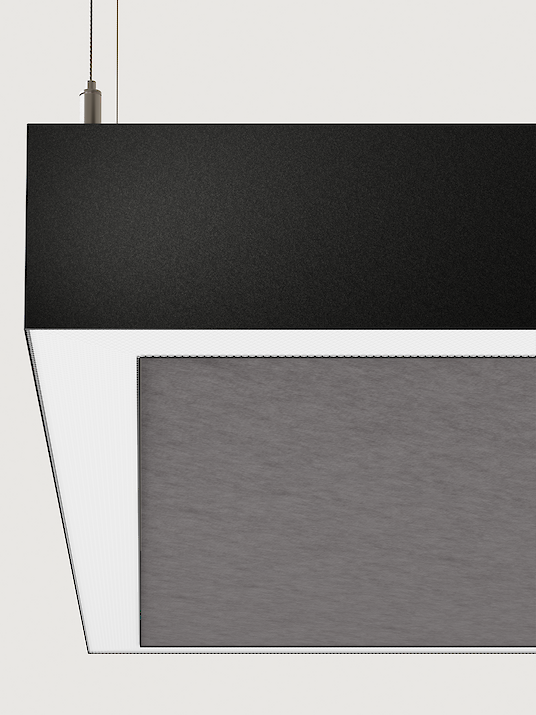

LED pendant luminaire
Direct-indirect or direct-only light distribution. Luminaire body made of 40mm wide aluminium profile. Surface silver or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Internal sound absorber for a wide frequency spectrum, reducing the reverberation time. Made of ecologically sourced sheep's wool available in various colours, microperforated steel in luminaire colour or green moss. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Microprismatic diffuser made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Heightadjustable parallel cord suspension with transparent power supply cable. Delivery of system in one piece. Corners laser welded.
Product adjustments
Midpin Downlight XD 310lm/5W/Ø21mm
Midpin Spotlight XM 770lm/10W/Ø40mm
Multisensor
Micro Perforated
Beige Wool
Green Wool
Graphite Wool
Green Moss
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Acoustic absorber | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGXLSL-830H-Q965-KA-AW | Matric-GX Square Acoustic | Q=965mm | Lens Louvre | Radiant Silver | 3000K | Dimmable (DALI) | Parallel susp. (Set) | Absorber (White Perforated) | 14205lm | 87W |
|
LGXLSE-840H-Q701-KA-AW | Matric-GX Square Acoustic | Q=701mm | Lens Louvre | Radiant Silver | 4000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 10530lm | 64W |
|
LGXLWE-830M-Q1230-KG-AW | Matric-GX Square Acoustic | Q=1230mm | Lens Louvre | Snow White | 3000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 14089lm | 87W |
|
LGXLWE-840M-Q1230-KG-AW | Matric-GX Square Acoustic | Q=1230mm | Lens Louvre | Snow White | 4000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 14600lm | 87W |
|
LGXLWE-840M-Q701-KG-AW | Matric-GX Square Acoustic | Q=701mm | Lens Louvre | Snow White | 4000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 8110lm | 48W |
|
LGXLWL-830M-Q701-KG-AW | Matric-GX Square Acoustic | Q=701mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Parallel susp. (Set) | Absorber (White Perforated) | 7826lm | 48W |
|
LGXLWL-840M-Q701-KG-AW | Matric-GX Square Acoustic | Q=701mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Parallel susp. (Set) | Absorber (White Perforated) | 8110lm | 48W |
|
LGXLWE-830M-Q965-KG-AW | Matric-GX Square Acoustic | Q=965mm | Lens Louvre | Snow White | 3000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 10953lm | 66W |
|
LGXLWE-840M-Q965-KG-AW | Matric-GX Square Acoustic | Q=965mm | Lens Louvre | Snow White | 4000K | Switchable | Parallel susp. (Set) | Absorber (White Perforated) | 11350lm | 66W |
|
LGXLWL-830M-Q965-KG-AW | Matric-GX Square Acoustic | Q=965mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Parallel susp. (Set) | Absorber (White Perforated) | 10953lm | 66W |
