Basic Max G1/P1 | Suspended

LED pendant luminaire

Direct-indirect or direct-only light distribution. Luminaire body made of aluminum profile in 8 different diameters from 300mm to 2000mm – with overall height of 75mm. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces (up to max. Ø1200). Opal diffuser made of acrylic glass. From Ø1500 diffuser with with opal stretch foil for general lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central cord su pension (max. Ø1500), parallel cord suspension with transparent power supply cable, or rod suspension. Ceiling rose and rod suspension in matching colour to luminaire body. On request: Integration of emergency lighting components, sensor technology.

To download area

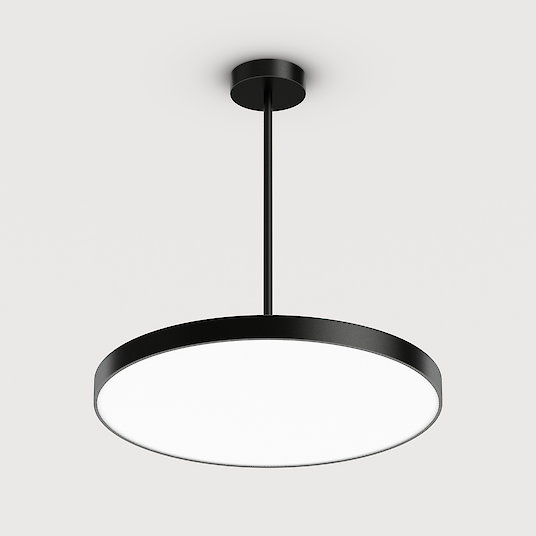

The picture shows a modern, round pendant luminaire with a flat, black housing. The luminaire has a minimalist design and hangs from the ceiling on a black cable. The background colour of the picture is a light grey.

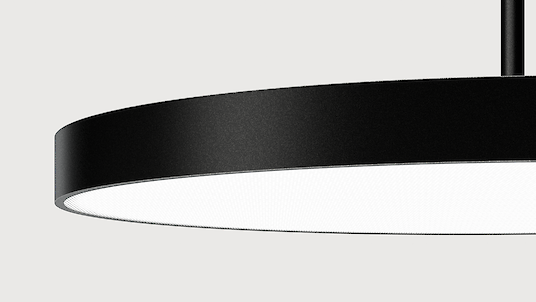

The illustration shows a section of a modern, round pendant luminaire with a flat, black housing. Only one half of the luminaire can be seen. The background colour of the picture is a light grey.

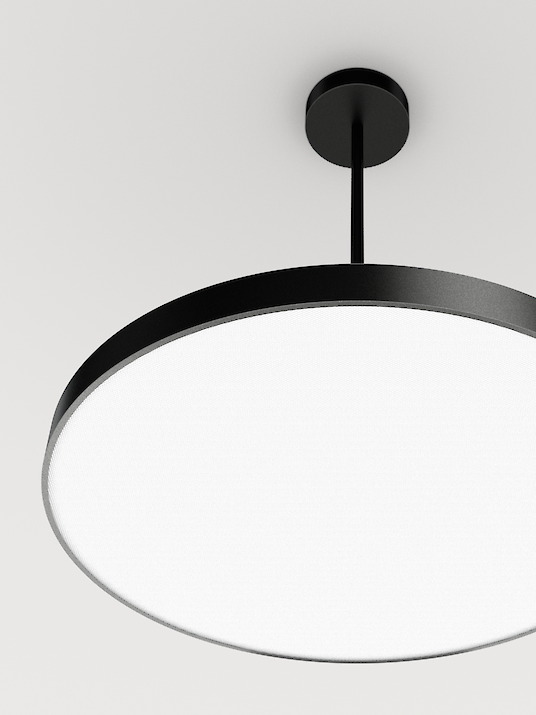

The illustration shows a section of a modern, round pendant luminaire with a flat, black housing. Just over half of the luminaire can be seen. The background colour of the image is a light grey.

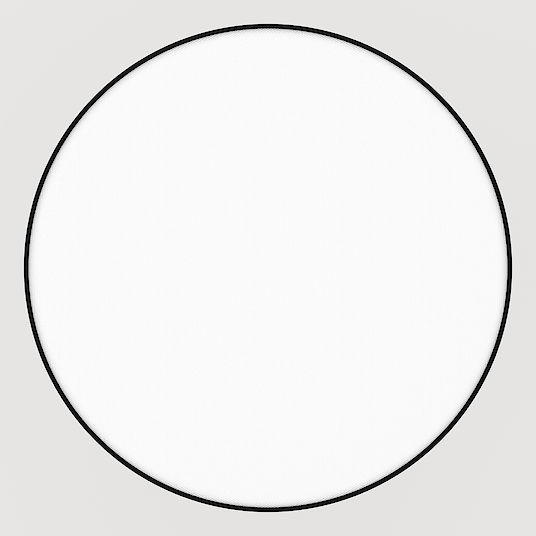

The illustration shows a section of a modern, round pendant luminaire with a flat, black housing. The section shows the underside of the light so that the diffuser of the luminaire can be recognised. The background colour of the image is a light grey.

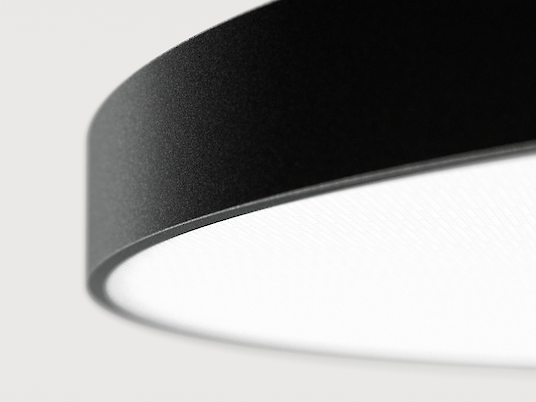

The illustration shows a modern, round pendant luminaire with a flat, black housing. The detail shows the underside of the luminaire so that the diffuser of the luminaire can be recognised. The background colour of the image is a light grey.

Product adjustments

Snow White

Satin Silver

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

Snow White
Radiant Silver
Jet Black
Natural Anodised
Ivory White
Anodic Silver
Stone Grey
Urban Graphite
Anodic Bronze
Matte Terra
Medium Brass
Anodic Champagne
Satin Silver
Satin Taupe
Satin Cloud
Satin Gold
Satin Pale Gold
Satin Ivy Green
Satin Copper
Satin Cipria
Satin Bronze

Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.
- Snow White
- Radiant Silver
- Jet Black
- Natural Anodised
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.
- Ivory White
- Anodic Silver
- Stone Grey
- Urban Graphite
- Anodic Bronze
- Matte Terra
- Medium Brass
- Anodic Champagne
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.
- Satin Silver
- Satin Taupe
- Satin Cloud
- Satin Gold
- Satin Pale Gold
- Satin Ivy Green
- Satin Copper
- Satin Cipria
- Satin Bronze

Download catalog page and assembly instructions

Configuration and data download

Filter

Downloads	Article code	Productname	Length L/Diameter D (mm)	Optical system	Surface finish	Colour temperature	Control	Suspension	Luminous Flux	Power consumption
PDF LDT DWG IES RFA ULD TXT ROLF	BP1OWL-840E-D900-P	Basic-P1	D=900mm	Opal diffuser	Snow White	4000K	Dimmable (DALI)	Rod susp. (Set)	13860lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1AWL-830E-D900-P	Basic-P1	D=900mm	Microprismatic screen	Snow White	3000K	Dimmable (DALI)	Rod susp. (Set)	13317lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1OWL-830E-D900-P	Basic-P1	D=900mm	Opal diffuser	Snow White	3000K	Dimmable (DALI)	Rod susp. (Set)	13375lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1ASE-840E-D900-U	Basic-P1	D=900mm	Microprismatic screen	Radiant Silver	4000K	Switchable	Central susp. (Set)	13800lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1ASE-830E-D900-U	Basic-P1	D=900mm	Microprismatic screen	Radiant Silver	3000K	Switchable	Central susp. (Set)	13317lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1ASE-840E-D900-K	Basic-P1	D=900mm	Microprismatic screen	Radiant Silver	4000K	Switchable	Parallel susp. (Set)	13800lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1ASE-830E-D900-K	Basic-P1	D=900mm	Microprismatic screen	Radiant Silver	3000K	Switchable	Parallel susp. (Set)	13317lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1OSE-830E-D900-K	Basic-P1	D=900mm	Opal diffuser	Radiant Silver	3000K	Switchable	Parallel susp. (Set)	13375lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1ASE-840E-D900-P	Basic-P1	D=900mm	Microprismatic screen	Radiant Silver	4000K	Switchable	Rod susp. (Set)	13800lm	82W
PDF LDT DWG IES RFA ULD TXT ROLF	BP1OSE-840E-D900-P	Basic-P1	D=900mm	Opal diffuser	Radiant Silver	4000K	Switchable	Rod susp. (Set)	13860lm	82W
