Matric 80 W6 | Wall

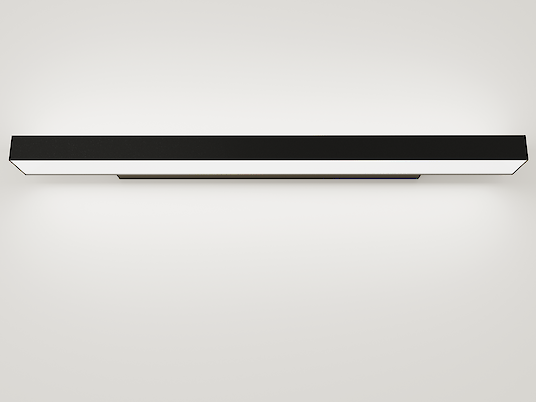

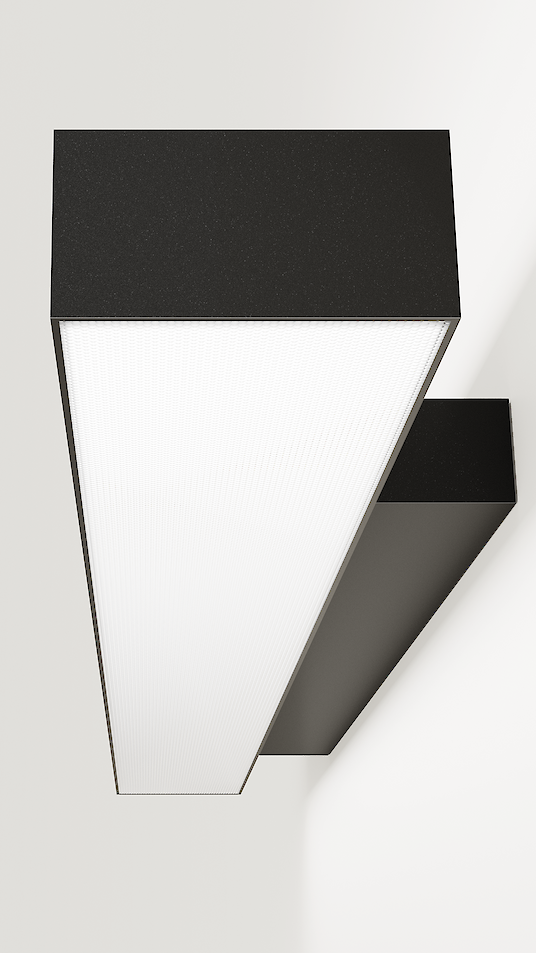

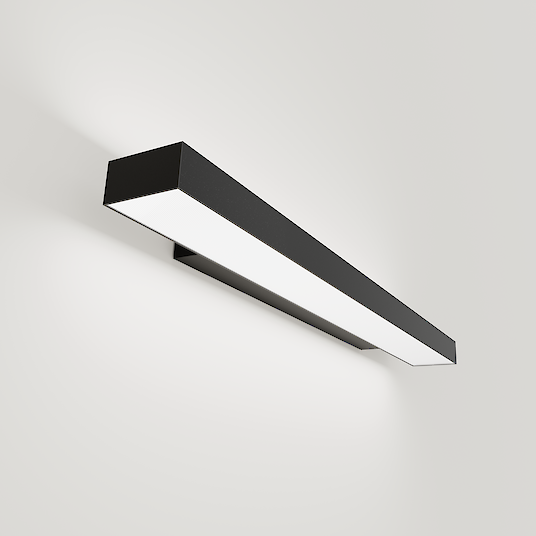

LED surface-mounted luminaire for horizontal wall mounting

Housing made of aluminium profile. Surface natural anodised or white, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction for workplaces. Satin opal diffuser for general lighting. Indirect component with clear acrylic cover for dust protection. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.

To download area

Product adjustments

Snow White

Natural Anodised

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

  • Snow White

  • Radiant Silver

  • Jet Black

  • Natural Anodised

  • Ivory White

  • Anodic Silver

  • Stone Grey

  • Urban Graphite

  • Anodic Bronze

  • Matte Terra

  • Medium Brass

  • Anodic Champagne

  • Satin Silver

  • Satin Taupe

  • Satin Cloud

  • Satin Gold

  • Satin Pale Gold

  • Satin Ivy Green

  • Satin Copper

  • Satin Cipria

  • Satin Bronze

  • Sustainability Plus Collection

    In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.

    • Snow White

    • Radiant Silver

    • Jet Black

    • Natural Anodised

  • Deep Matte Collection

    For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.

    • Ivory White

    • Anodic Silver

    • Stone Grey

    • Urban Graphite

    • Anodic Bronze

    • Matte Terra

    • Medium Brass

    • Anodic Champagne

  • Satin Collection

    Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.

    • Satin Silver

    • Satin Taupe

    • Satin Cloud

    • Satin Gold

    • Satin Pale Gold

    • Satin Ivy Green

    • Satin Copper

    • Satin Cipria

    • Satin Bronze

Download catalog page and assembly instructions

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Luminous Flux Power consumption
LW6AWE-840E-L1182 Matric-W6 L=1182mm Microprismatic screen Snow White 4000K Switchable 4000lm 26W
LW6YBE-840E-L1182 Matric-W6 L=1182mm Asymmetrical Jet Black 4000K Switchable 4090lm 26W
LW6YWL-830E-L1182 Matric-W6 L=1182mm Asymmetrical Snow White 3000K Dimmable (DALI) 3947lm 26W
LW6YEL-830E-L1182 Matric-W6 L=1182mm Asymmetrical Natural Anodised 3000K Dimmable (DALI) 3947lm 26W
LW6YBL-840E-L1182 Matric-W6 L=1182mm Asymmetrical Jet Black 4000K Dimmable (DALI) 4090lm 26W
LW6YWE-830E-L1475 Matric-W6 L=1475mm Asymmetrical Snow White 3000K Switchable 4931lm 32W
LW6OWL-830E-L1475 Matric-W6 L=1475mm Opal diffuser Snow White 3000K Dimmable (DALI) 4989lm 32W
LW6OEL-830E-L1475 Matric-W6 L=1475mm Opal diffuser Natural Anodised 3000K Dimmable (DALI) 4989lm 32W
LW6YBL-840E-L890 Matric-W6 L=890mm Asymmetrical Jet Black 4000K Dimmable (DALI) 3070lm 20W
LW6YWE-830E-L1182 Matric-W6 L=1182mm Asymmetrical Snow White 3000K Switchable 3947lm 26W
