Matric 40 Ambient AX | Wall

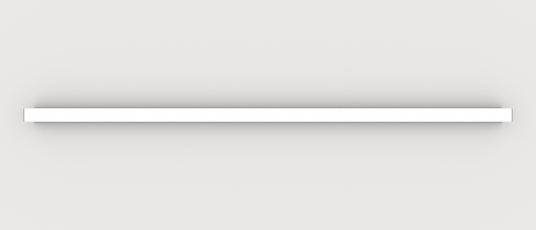

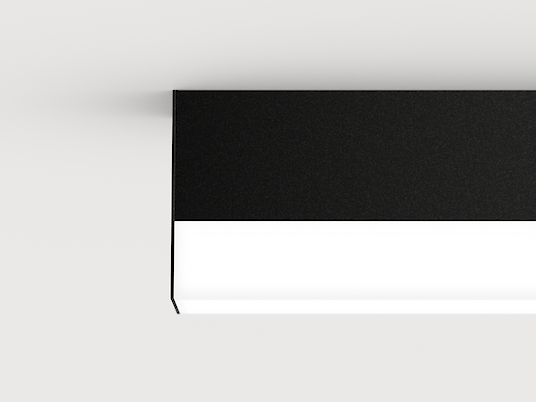

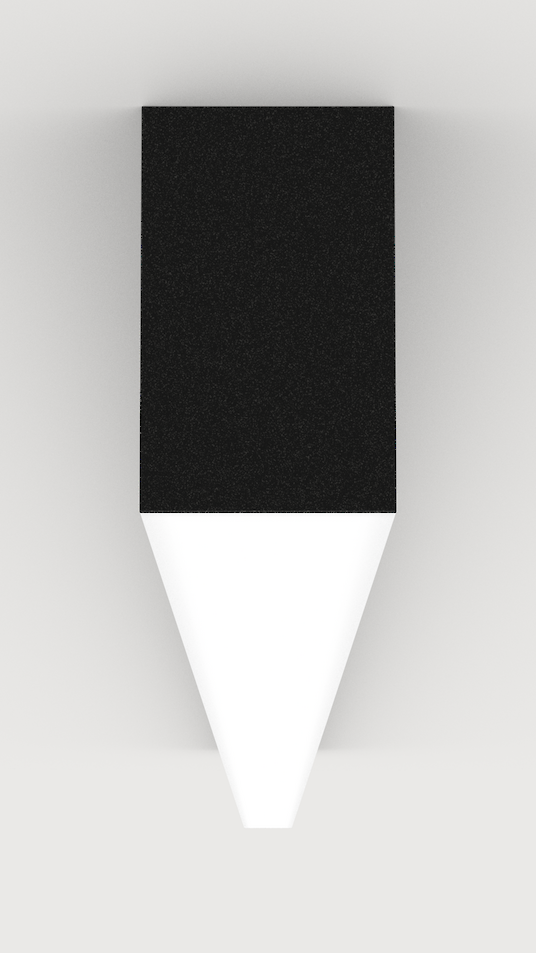

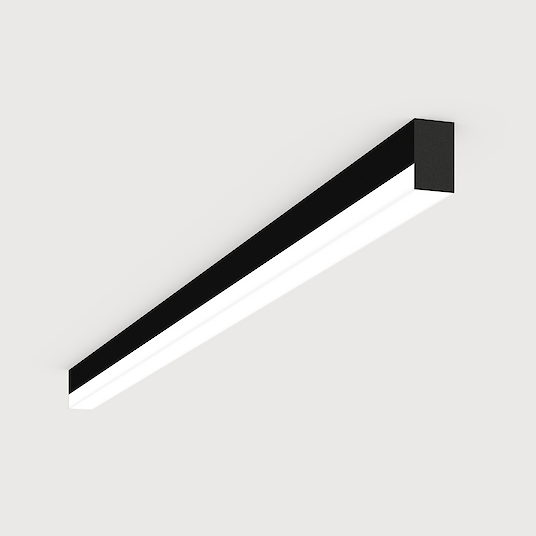

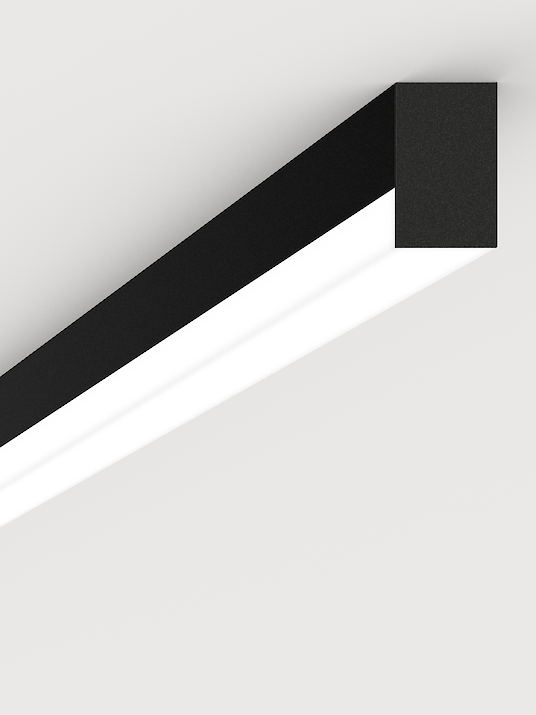

LED surface-mounted luminaire for optional horizontal or vertical wall mounting or ceiling mounting

Omnidirectional light distribution for subtle wall or ceiling illumination. Light channel made of aluminium profile. Bespoke lengths are possible. Surface natural anodised or white, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Ambient diffuser made of frosted acrylic glass for general lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components.

To download area

Product adjustments

Snow White

Natural Anodised

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

  • Snow White

  • Radiant Silver

  • Jet Black

  • Natural Anodised

  • Ivory White

  • Anodic Silver

  • Stone Grey

  • Urban Graphite

  • Anodic Bronze

  • Matte Terra

  • Medium Brass

  • Anodic Champagne

  • Satin Silver

  • Satin Taupe

  • Satin Cloud

  • Satin Gold

  • Satin Pale Gold

  • Satin Ivy Green

  • Satin Copper

  • Satin Cipria

  • Satin Bronze

  • Sustainability Plus Collection

    In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.

    • Snow White

    • Radiant Silver

    • Jet Black

    • Natural Anodised

  • Deep Matte Collection

    For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.

    • Ivory White

    • Anodic Silver

    • Stone Grey

    • Urban Graphite

    • Anodic Bronze

    • Matte Terra

    • Medium Brass

    • Anodic Champagne

  • Satin Collection

    Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.

    • Satin Silver

    • Satin Taupe

    • Satin Cloud

    • Satin Gold

    • Satin Pale Gold

    • Satin Ivy Green

    • Satin Copper

    • Satin Cipria

    • Satin Bronze

Download catalog page and assembly instructions

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Reflector Colour Inside

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Reflector Colour Inside Luminous Flux Power consumption
LAXFEE-830M-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Natural Anodised 3000K Switchable 1998lm/m 13W/m
LAXFBE-840M-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Jet Black 4000K Switchable 2070lm/m 13W/m
LAXFWE-840M-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Snow White 4000K Switchable 2070lm/m 13W/m
LAXFWE-840H-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Snow White 4000K Switchable 2850lm/m 17W/m
LAXFWL-840M-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Snow White 4000K Dimmable (DALI) 2070lm/m 13W/m
LAXLEE-830E-Lxxxx-A Matric-AX Special length L=xxxxmm Lens Louvre Natural Anodised 3000K Switchable Reflector: Satin Silver 2036lm/m 13W/m
LAXFWE-830H-L1000 Matric-AX Linear metre L=1000mm Ambient diffuser Snow White 3000K Switchable 2750lm/m 17W/m
LAXFEL-840H-Lxxxx Matric-AX Special length L=xxxxmm Ambient diffuser Natural Anodised 4000K Dimmable (DALI) 2850lm/m 17W/m
LAXFBL-840H-Lxxxx Matric-AX Special length L=xxxxmm Ambient diffuser Jet Black 4000K Dimmable (DALI) 2850lm/m 17W/m
LAXAWE-830E-Lxxxx Matric-AX Special length L=xxxxmm Microprismatic screen Snow White 3000K Switchable 1293lm/m 11W/m
