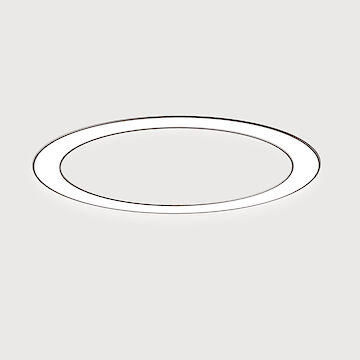

LED surface-mounted luminaire
Direct-only light distribution. Luminaire body made of aluminium profile with 40mm profile width. Compact version with central blank plate. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) for workplaces. Louvre available in various colour finishes. Driver integrated into central blank plate, optionally switchable or dimmable (DALI, Touch-Dim). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of sensor technology, ventilation outlets, loudspeakers, surveillance cameras and additional downlights in the central blind element.
Product adjustments
Blind Plate
Emergency Module
Multisensor
Air Supply (External Driver)
Camera
Snow White | Snow White
Snow White | Satin Silver
Snow White | Anodic Black
Snow White | Satin Gold
Snow White | Satin Pale Gold
Snow White | Satin Copper
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Central Module | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RA5LFL-827E-D200-A-BP | Ringo Star-A5 | D=200mm | Lens Louvre | Anodic Silver | 2700K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 1650lm | 12W | |
| RA5LFL-830E-D200-A-BP | Ringo Star-A5 | D=200mm | Lens Louvre | Anodic Silver | 3000K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 1650lm | 12W | |
| RA5LFL-840E-D200-A-BP | Ringo Star-A5 | D=200mm | Lens Louvre | Anodic Silver | 4000K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 1710lm | 12W | |
| RA5LFE-840H-D270-A-BP | Ringo Star-A5 | D=270mm | Lens Louvre | Anodic Silver | 4000K | Switchable | Reflector: Satin Silver | Blind Plate | 4270lm | 30W | |
| RA5LFL-827H-D270-A-BP | Ringo Star-A5 | D=270mm | Lens Louvre | Anodic Silver | 2700K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 4121lm | 30W | |
| RA5LFL-830H-D270-A-BP | Ringo Star-A5 | D=270mm | Lens Louvre | Anodic Silver | 3000K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 4121lm | 30W | |
| RA5LFL-840H-D270-A-BP | Ringo Star-A5 | D=270mm | Lens Louvre | Anodic Silver | 4000K | Dimmable (DALI) | Reflector: Satin Silver | Blind Plate | 4270lm | 30W | |
| RA5LFE-827E-D370-A-BP | Ringo Star-A5 | D=370mm | Lens Louvre | Anodic Silver | 2700K | Switchable | Reflector: Satin Silver | Blind Plate | 2837lm | 19W | |
| RA5LFE-830E-D370-A-BP | Ringo Star-A5 | D=370mm | Lens Louvre | Anodic Silver | 3000K | Switchable | Reflector: Satin Silver | Blind Plate | 2837lm | 19W | |
| RA5LFE-840E-D370-A-BP | Ringo Star-A5 | D=370mm | Lens Louvre | Anodic Silver | 4000K | Switchable | Reflector: Satin Silver | Blind Plate | 2940lm | 19W |
