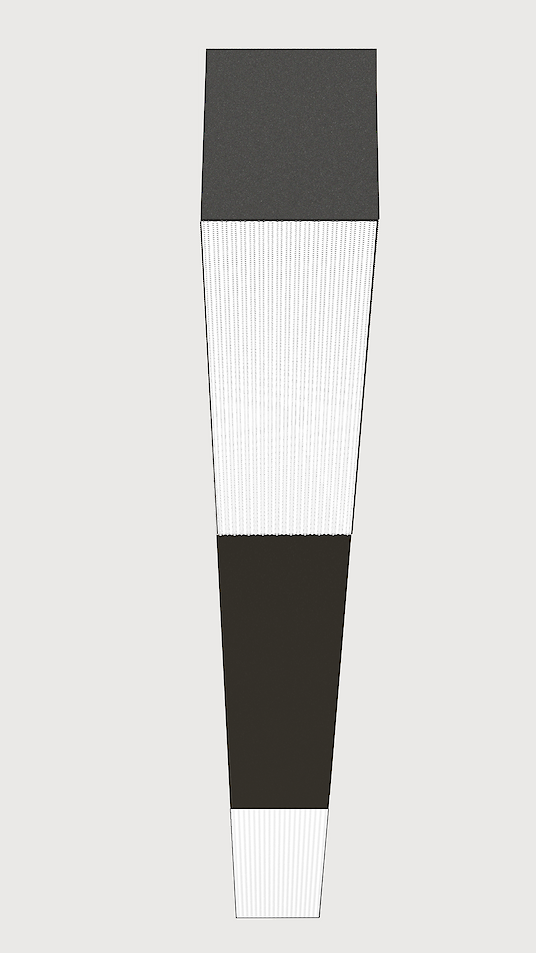

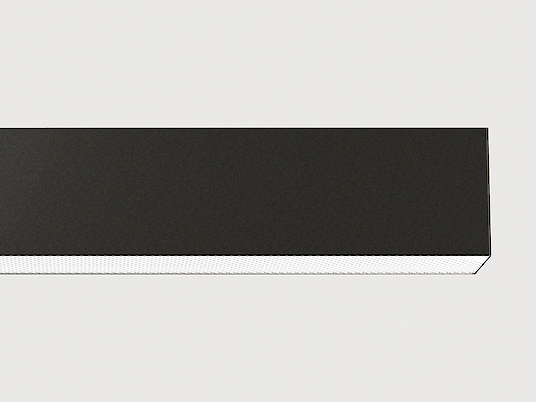

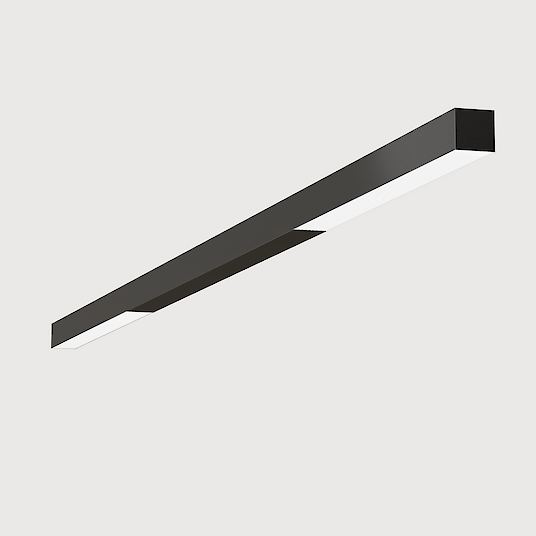

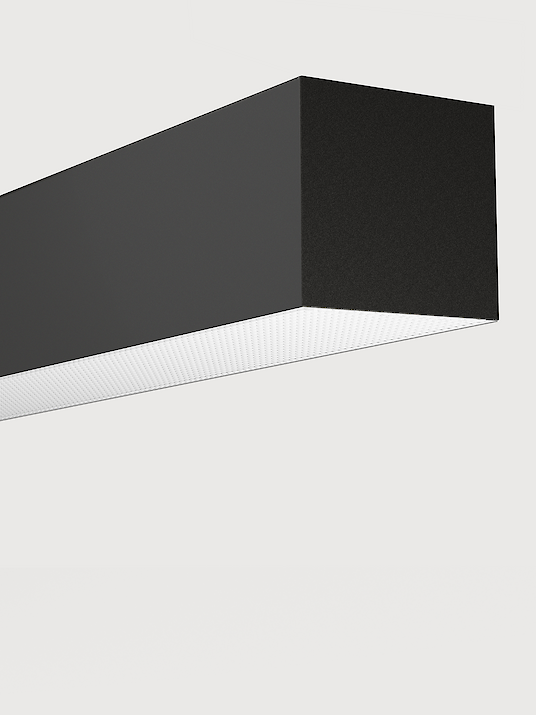

LED surface-mounted luminaire for walls or ceilings
Direct-only light distribution. Luminaire body made of aluminium profile with 40×40mm cross-section. Bespoke lengths are possible. Surface natural anodised or white, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Alternatively, microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Driver integrated into luminaire housing behind blind bays, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components and sensor technology.
Product adjustments
Midpin XP Spotlight
Midpin XM Spotlight
Multisensor
Snow White | Satin Silver
Natural Anodised | Satin Silver
Snow White | Anodic Black
Jet Black | Satin Gold
Jet Black | Satin Pale Gold
Ivory White | Satin Gold
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LAYOWL-840M-T2890 | Matric-AY | Double Version, L=2890mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | 4690lm | 33W | ||
| LAYLWL-830M-S1857-W | Matric-AY | Single Version, L=1857mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 2316lm | 20W | |
| LAYAEL-830M-S1894 | Matric-AY | Single Version, L=1894mm | Microprismatic screen | Natural Anodised | 3000K | Dimmable (DALI) | 2663lm | 23W | ||
| LAYLWE-830H-S1857-W | Matric-AY | Single Version, L=1857mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Snow White | 3107lm | 25W | |
| LAYOEL-840H-S1894 | Matric-AY | Single Version, L=1894mm | Opal diffuser | Natural Anodised | 4000K | Dimmable (DALI) | 4020lm | 29W | ||
| LAYOBE-830M-S1894 | Matric-AY | Single Version, L=1894mm | Opal diffuser | Jet Black | 3000K | Switchable | 2885lm | 23W | ||
| LAYOWL-840M-S1894 | Matric-AY | Single Version, L=1894mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | 2990lm | 23W | ||
| LAYAEE-840H-S1894 | Matric-AY | Single Version, L=1894mm | Microprismatic screen | Natural Anodised | 4000K | Switchable | 3710lm | 29W | ||
| LAYLWL-830H-S1857-W | Matric-AY | Single Version, L=1857mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 3107lm | 25W | |
| LAYLBL-840H-S1857-G | Matric-AY | Single Version, L=1857mm | Lens Louvre | Jet Black | 4000K | Dimmable (DALI) | Reflector: Satin Gold | 3220lm | 25W |
