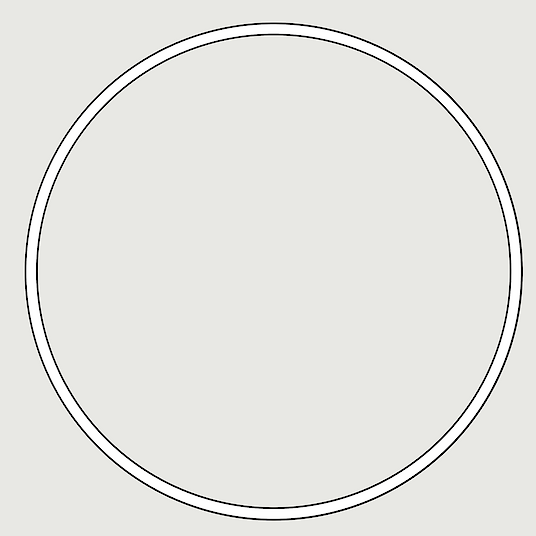

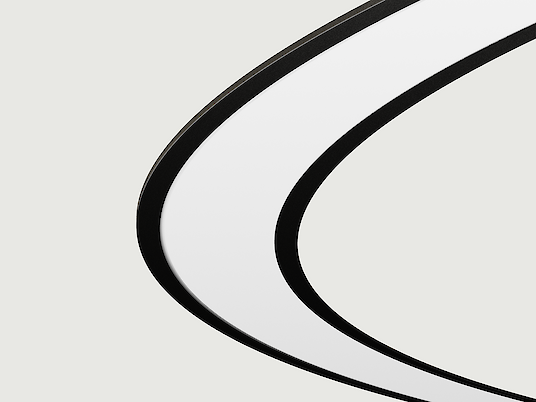

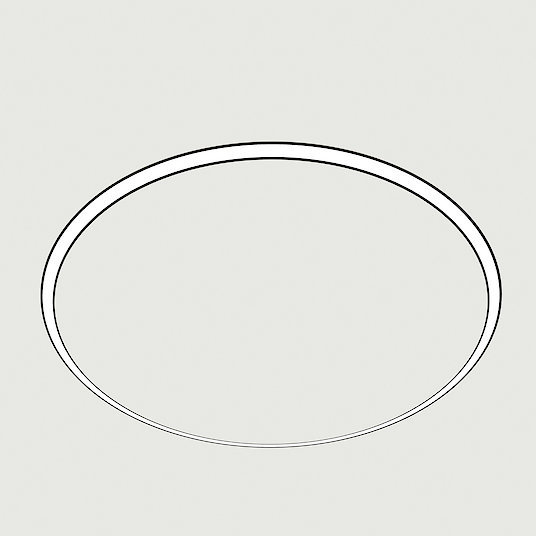

Recessed mounted LED luminaire for ceilings with cut-out openings
Direct only light distribution. Luminaire body with surrounding frame made of aluminium profile. Optic width 40mm. 5 different diameters from 600mm to 2000mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre (Ø610-Ø1255) for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included.
Product adjustments
Snow White | Snow White
Satin Silver | Satin Silver
Jet Black | Jet Black
Anodic Champagne | Anodic Champagne
Satin Gold | Satin Gold
Satin Copper | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
|
RFXLSL-830H-D3010-A | Ringo Star-FX | D=3010mm | Lens Louvre | Radiant Silver | 3000K | Dimmable (DALI) | Reflector: Satin Silver | 27165lm | 206W |
| RFXLWL-840H-D1510-W | Ringo Star-FX | D=1510mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Snow White | 13350lm | 98W | |
| RFXLBE-840E-D2010-G | Ringo Star-FX | D=2010mm | Lens Louvre | Jet Black | 4000K | Switchable | Reflector: Satin Gold | 9540lm | 68W | |
| RFXLWL-827H-D2010-G | Ringo Star-FX | D=2010mm | Lens Louvre | Snow White | 2700K | Dimmable (DALI) | Reflector: Satin Gold | 18248lm | 139W | |
| RFXCBE-840M-D2510 | Ringo Star-FX | D=2510mm | Opal Flex Diffuser | Jet Black | 4000K | Switchable | 14000lm | 116W | ||
| RFXCWE-840M-D2510 | Ringo Star-FX | D=2510mm | Opal Flex Diffuser | Snow White | 4000K | Switchable | 14000lm | 116W | ||
|
RFXLBE-827E-D2510-G | Ringo Star-FX | D=2510mm | Lens Louvre | Jet Black | 2700K | Switchable | Reflector: Satin Gold | 11136lm | 82W |
|
RFXLWE-830E-D2510-W | Ringo Star-FX | D=2510mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Snow White | 11136lm | 82W |
|
RFXLSL-830H-D2510-A | Ringo Star-FX | D=2510mm | Lens Louvre | Radiant Silver | 3000K | Dimmable (DALI) | Reflector: Satin Silver | 22089lm | 167W |
|
RFXLWE-827E-D3010-W | Ringo Star-FX | D=3010mm | Lens Louvre | Snow White | 2700K | Switchable | Reflector: Snow White | 13703lm | 101W |
