LED recessed mounted light system
FX version with surrounding frame for ceilings with cut-out openings. Version QX with frame on one side to allow mounting near walls. Direct-only light distribution. Highly flexible system consisting of linear elements, curved elements and Y- and X-connectors. Each module is designed as a stand-alone luminaire with an integrated driver and can be connected to the other modules using a sophisticated connector system to create any desired lighting structure. Millimeter-precise length production as well as special bends (Opal only) possible. Based on customer specifications, Lightnet creates technical drawings of the desired structure for review and approval. Luminaire body with soft corners made of aluminium profile with 40mm optic width, crafted in one piece with no visible seams at the ends. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various surfaces. Satin opal diffuser for general lighting with maximum transmittance and uniformity. Driver optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable set of pendant suspensions for mounting on raw concrete ceiling included.
Product adjustments

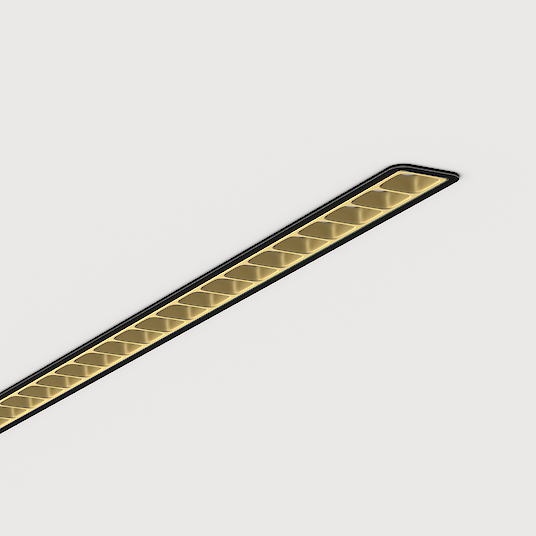

Linear Modules

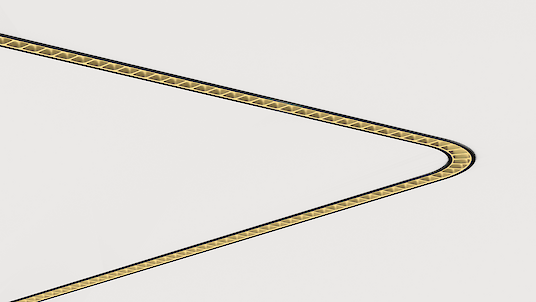

Bend Modules

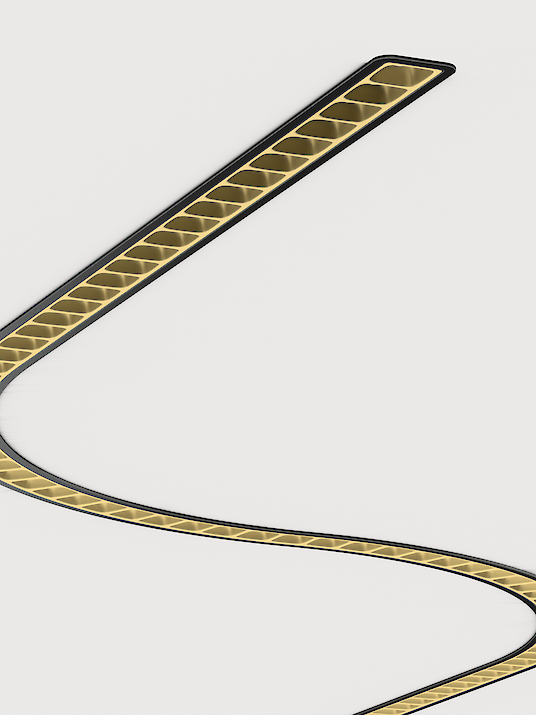

Curve Modules
Wave Modules

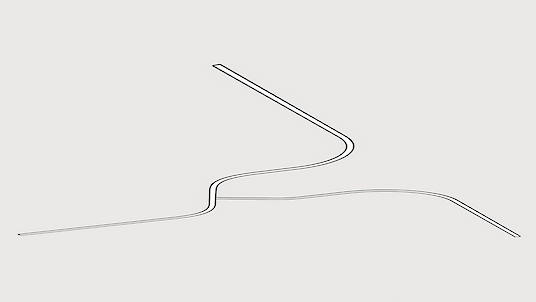

Y-Modules
X-Modules
Midpin XM4 Ø40
Midpin XM5 Ø55
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| QFXCWE-840E-STRUCTURE_Lxxxx | Liquid Line-FX | Opal Flex Diffuser | Snow White | 4000K | Switchable | 1310lm/m | 10,9W/m | ||
| QFXLWE-840E-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Snow White | 1920lm/m | 12,5W/m | |
| QFXLWE-830E-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Snow White | 1853lm/m | 12,5W/m | |
| QFXLWE-840H-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Snow White | 3600lm/m | 23,4W/m | |
| QFXLWE-830H-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Snow White | 3474lm/m | 23,4W/m | |
| QFXLWL-840E-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Snow White | 1920lm/m | 12,5W/m | |
| QFXLWL-830E-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 1853lm/m | 12,5W/m | |
| QFXLWL-840H-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Snow White | 3600lm/m | 23,4W/m | |
| QFXLWL-830H-STRUCTURE_Lxxxx-W | Liquid Line-FX | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 3474lm/m | 23,4W/m | |
| QFXLWE-830E-STRUCTURE_Lxxxx-G | Liquid Line-FX | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Satin Gold | 1853lm/m | 12,5W/m |
