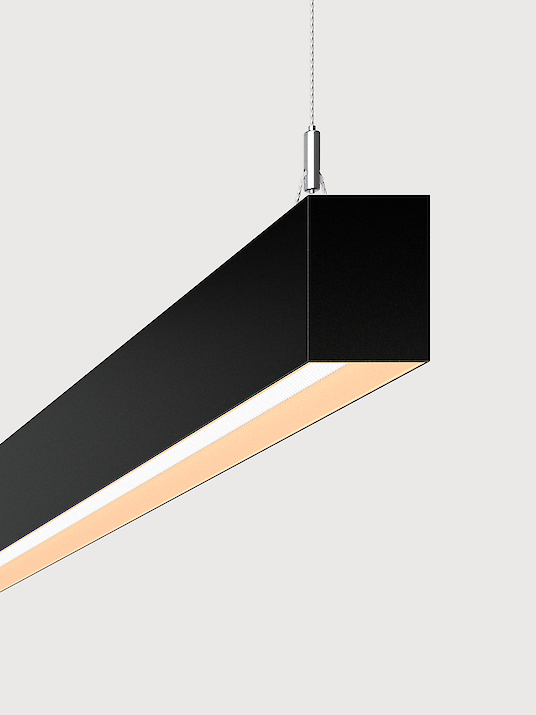

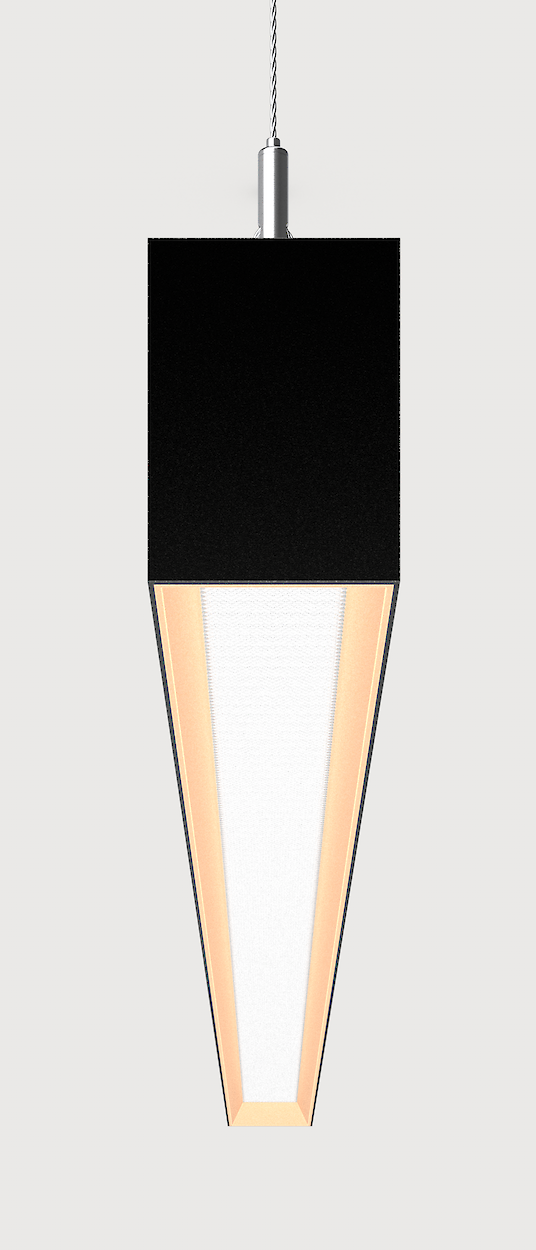

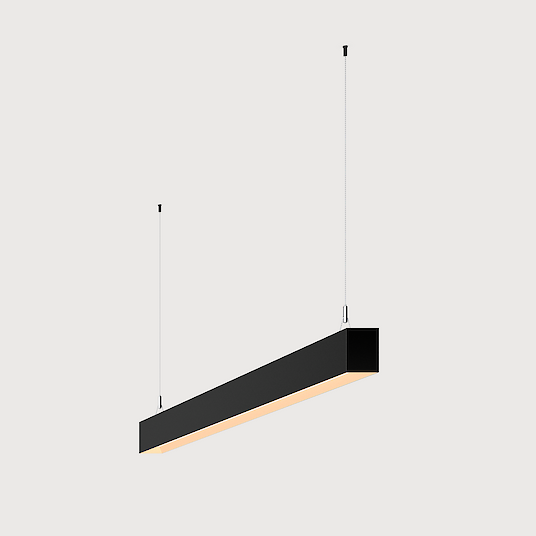

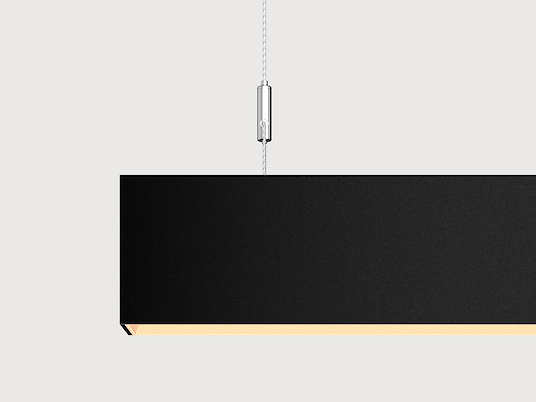

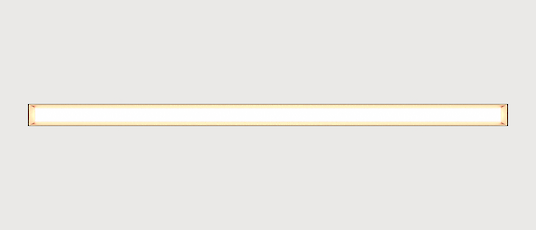

LED pendant luminaire
Direct-indirect or direct-only light distribution. Light channel made of aluminium profile with 55mm profile width. Bespoke lengths are possible. Recessed screen with optimized glare reduction and decorative lighting impact. Outer housing and all-around reflector ring available in various finishes and combinations. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and uniformity. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable Y-cord suspension with transparent power supply cable or twin-rod suspension. Ceiling rose in matching colour to the luminaire body. On request: Integration of tracks.
Product adjustments
Snow White | Snow White
Satin Silver | Snow White
Jet Black | Satin Silver
Jet Black | Anodic Black
Jet Black | Satin Gold
Snow White | Satin Copper
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LG9AWE-830E-L1000-YG | Matric-G9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Switchable | Y-susp. (Set) | Reflector: Satin Gold | 1312lm/m | 11W/m | |
| LG9LBL-830H-L1000-YG | Matric-G9 | Linear metre L=1000mm | Lens Louvre | Jet Black | 3000K | Dimmable (DALI) | Y-susp. (Set) | Reflector: Satin Gold | 3464lm/m | 23W/m | |
| LG9LWL-840H-L1000-YW | Matric-G9 | Linear metre L=1000mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Y-susp. (Set) | Reflector: Snow White | 3590lm/m | 23W/m | |
| LG9AWE-830E-L1000-YW | Matric-G9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Switchable | Y-susp. (Set) | Reflector: Snow White | 1312lm/m | 11W/m | |
| LG9AWL-830E-L1000-YW | Matric-G9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | Y-susp. (Set) | Reflector: Snow White | 1312lm/m | 11W/m | |
| LG9LWL-840H-L1000-YG | Matric-G9 | Linear metre L=1000mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Y-susp. (Set) | Reflector: Satin Gold | 3590lm/m | 23W/m | |
| LG9LBL-840H-L1000-YG | Matric-G9 | Linear metre L=1000mm | Lens Louvre | Jet Black | 4000K | Dimmable (DALI) | Y-susp. (Set) | Reflector: Satin Gold | 3590lm/m | 23W/m | |
| LG9AWE-840E-L1000-YG | Matric-G9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 4000K | Switchable | Y-susp. (Set) | Reflector: Satin Gold | 1360lm/m | 11W/m | |
| LG9OBE-830M-Lxxxx-YG | Matric-G9 | Special length L=xxxxmm | Opal diffuser | Jet Black | 3000K | Switchable | Y-susp. (Set) | Reflector: Satin Gold | 1650lm/m | 14W/m | |
| LG9OWE-840M-Lxxxx-YW | Matric-G9 | Special length L=xxxxmm | Opal diffuser | Snow White | 4000K | Switchable | Y-susp. (Set) | Reflector: Snow White | 1710lm/m | 14W/m |
