LED pendant luminaire

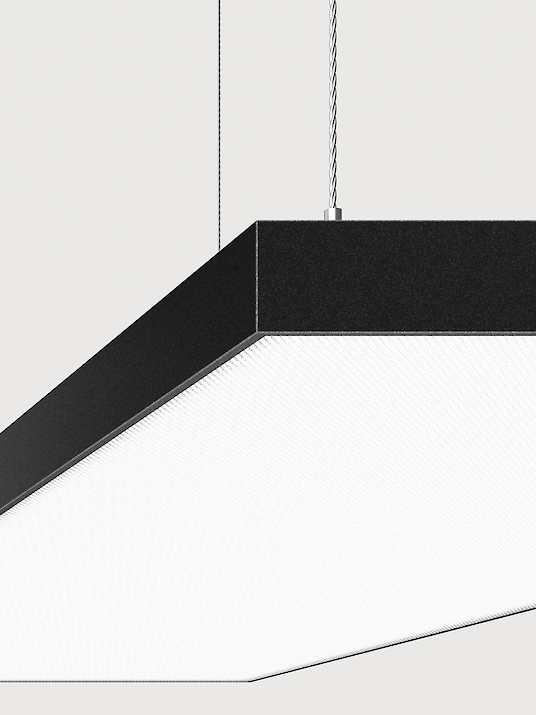

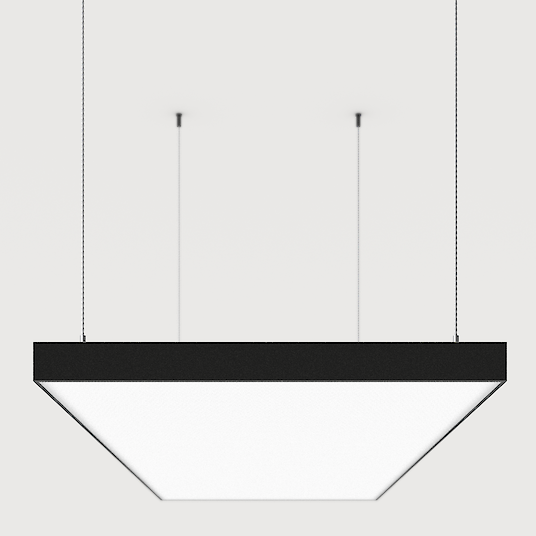

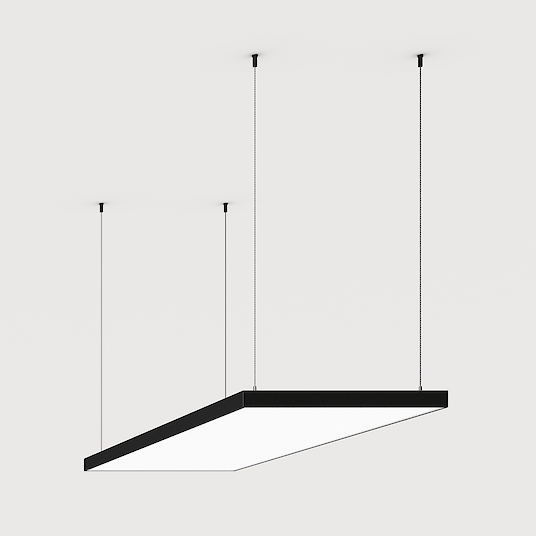

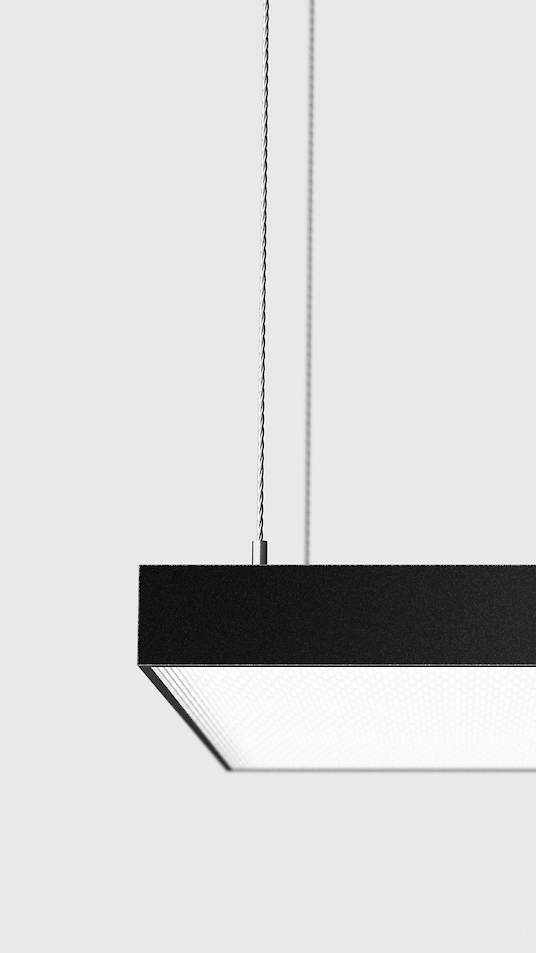

Direct-indirect or direct-only light distribution. Luminaire body with slim overall height made of aluminium profile. Surface natural anodised or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700- 6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable parallel or Y-cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Multisensor
Emergency Module
Snow White
Silver Anodised
Urban Graphite
Jet Black
Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Frame Design | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CP5AEE-830M-L1200-YC | Cubic-P5 | L=1200mm | Microprismatic screen | Natural Anodised | 3000K | Switchable | Y-susp. (Set) | Sharp Edge | 7276lm | 50W | |
| CP5AWL-840H-L900-KC | Cubic-P5 | L=900mm | Microprismatic screen | Snow White | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | Sharp Edge | 8050lm | 54W | |
| CP5AEL-840H-L900-KC | Cubic-P5 | L=900mm | Microprismatic screen | Natural Anodised | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | Sharp Edge | 8050lm | 54W | |
| CP5AWE-840M-L900-KC | Cubic-P5 | L=900mm | Microprismatic screen | Snow White | 4000K | Switchable | Parallel cord susp (Set) | Sharp Edge | 5500lm | 37W | |
| CP5AEE-840M-L900-KC | Cubic-P5 | L=900mm | Microprismatic screen | Natural Anodised | 4000K | Switchable | Parallel cord susp (Set) | Sharp Edge | 5500lm | 37W | |
| CP5OBL-840H-L1200-KC | Cubic-P5 | L=1200mm | Opal diffuser | Jet Black | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | Sharp Edge | 10200lm | 71W | |
| CP5OWE-840M-L1200-YC | Cubic-P5 | L=1200mm | Opal diffuser | Snow White | 4000K | Switchable | Y-susp. (Set) | Sharp Edge | 7170lm | 50W | |
| CP5OBE-830H-L1500-KC | Cubic-P5 | L=1500mm | Opal diffuser | Jet Black | 3000K | Switchable | Parallel cord susp (Set) | Sharp Edge | 12835lm | 90W | |
| CP5OBL-840M-L1500-KC | Cubic-P5 | L=1500mm | Opal diffuser | Jet Black | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | Sharp Edge | 8860lm | 59W | |
| CP5OWL-840H-L1500-KC | Cubic-P5 | L=1500mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | Sharp Edge | 13300lm | 90W |
