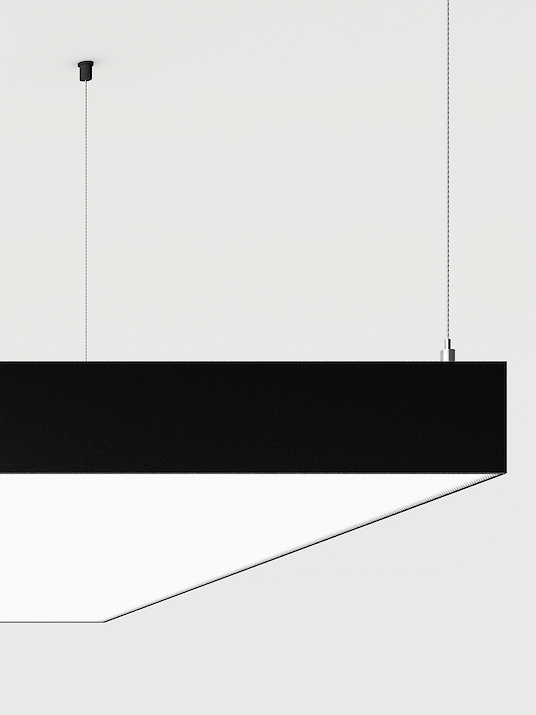

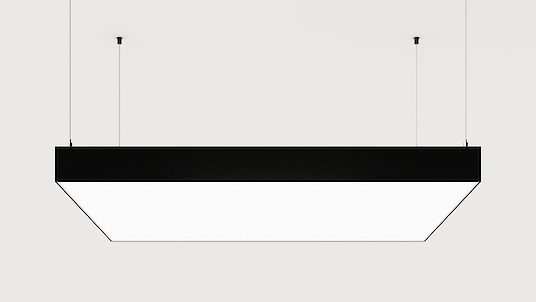

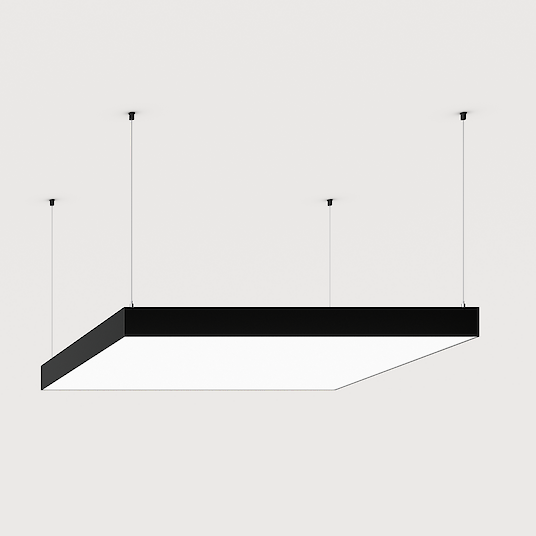

LED pendant luminaire
Direct-indirect or direct-only light distribution. Luminaire body made of 75mm high aluminium profile. Surface natural anodised or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser (Q330-Q1200) and opal foil (Q1500, Q2000) for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Multisensor
Snow White
Silver Anodised
Urban Graphite
Jet Black
Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| CG2TEE-830M-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 3000K | Switchable | Parallel cord susp (Set) | 20390lm | 176W | |
| CG2TEE-830H-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 3000K | Switchable | Parallel cord susp (Set) | 31131lm | 264W | |
| CG2TEL-840H-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | 32260lm | 264W | |
| CG2TEL-830H-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 3000K | Dimmable (DALI) | Parallel cord susp (Set) | 31131lm | 264W | |
| CG2TEL-830M-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 3000K | Dimmable (DALI) | Parallel cord susp (Set) | 20390lm | 176W | |
| CG2TEL-840M-Q1500-K | Cubic-G2 | L=1500mm | Opal stretch foil | Natural Anodised | 4000K | Dimmable (DALI) | Parallel cord susp (Set) | 21130lm | 176W | |
| CG2AWE-840M-Q900-K | Cubic-G2 | L=900mm | Microprismatic screen | Snow White | 4000K | Switchable | Parallel susp. (Set) | 9100lm | 63W | |
| CG2AWE-840M-Q1200-K | Cubic-G2 | L=1200mm | Microprismatic screen | Snow White | 4000K | Switchable | Parallel susp. (Set) | 16500lm | 112W | |
| CG2AEE-840M-Q900-K | Cubic-G2 | L=900mm | Microprismatic screen | Natural Anodised | 4000K | Switchable | Parallel susp. (Set) | 9100lm | 63W | |
| CG2AEE-840M-Q1200-K | Cubic-G2 | L=1200mm | Microprismatic screen | Natural Anodised | 4000K | Switchable | Parallel susp. (Set) | 16500lm | 112W |
