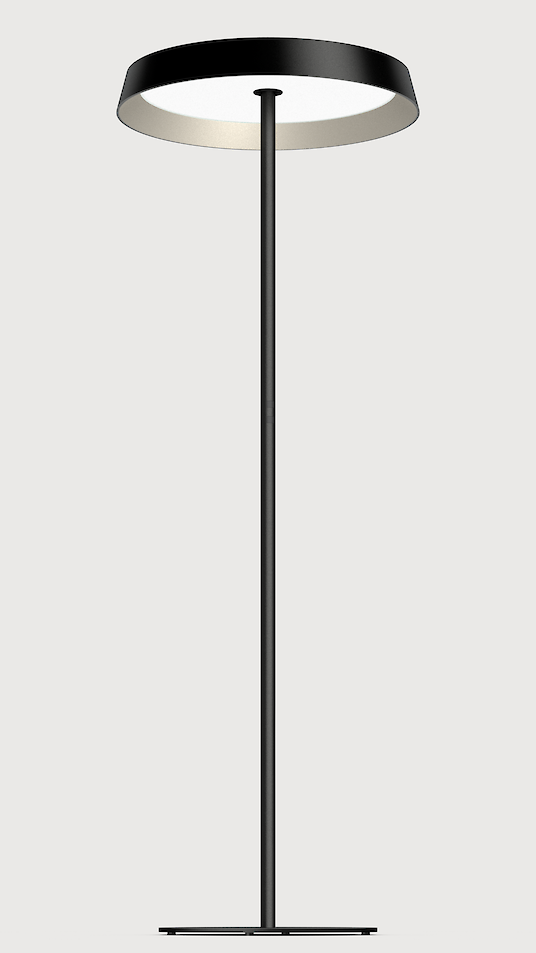

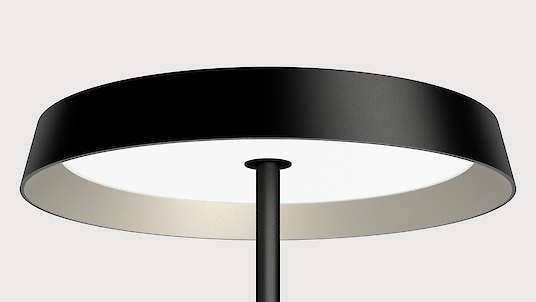

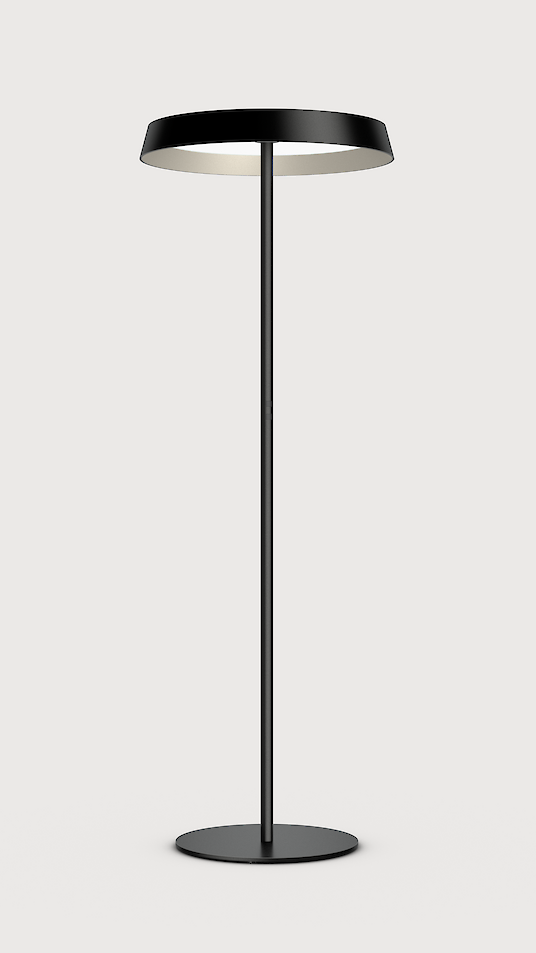

LED free-standing luminaire with a rebated lens optic in a decorative ring
Direct-indirect light distribution. Luminaire shade made of high-quality processed synthetic cast. Outer housing and inner decor available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations, see Lightnet-Surface-Collection or Bi-Colour selection. Microprismatic screen with optimized glare reduction for workplaces. Satin opal diffuser for general lighting with maximum transmittance and uniformity. Intuitive pole mounted control panel for dimming and switching the direct/indirect light separately, joint control of the light chambers with Tunable White or integration of multi-sensor or swarm technology. Optional: HCL Control for automatic, time dependent, biodynamic lighting. Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Steel Base plate, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Multisensor / HCL / Swarm Control
Separately Dimmable
Snow White | Satin Gold
Snow White | Satin Copper
Anodic Silver | Anodic Black
Anodic Black | Satin Silver
Anodic Black | Satin Gold
Anodic Black | Satin Cipria
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Reflector Colour Inside | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS4AWX-827M-D650-CW-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | Square base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AWX-827M-D650-CB-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AWX-827M-D650-CG-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AAX-827M-D650-CA-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Satin Silver | 2700K | Separately stepless dimmable | Square base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4ABX-827M-D650-CB-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Jet Black | 2700K | Separately stepless dimmable | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4ABX-827M-D650-CG-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Jet Black | 2700K | Separately stepless dimmable | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AWX-830M-D650-CW-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | Square base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AWX-830M-D650-CB-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AWX-830M-D650-CG-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS4AAX-830M-D650-CA-A | Beam Me Up-S4 | D=650mm | Microprismatic screen | Satin Silver | 3000K | Separately stepless dimmable | Square base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 11127lm | 93W |
