Liquid Baffles

Baffles:

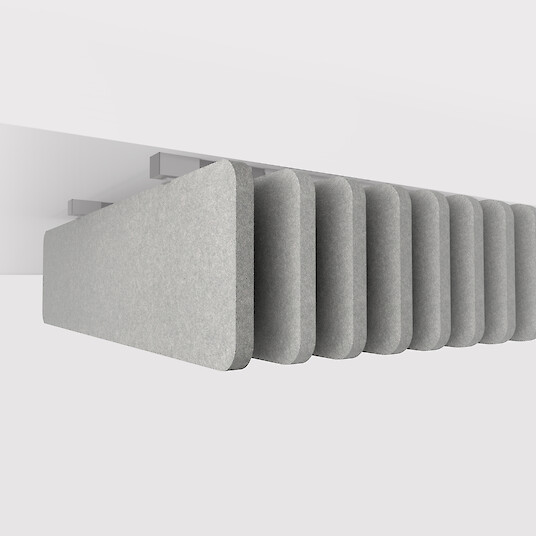

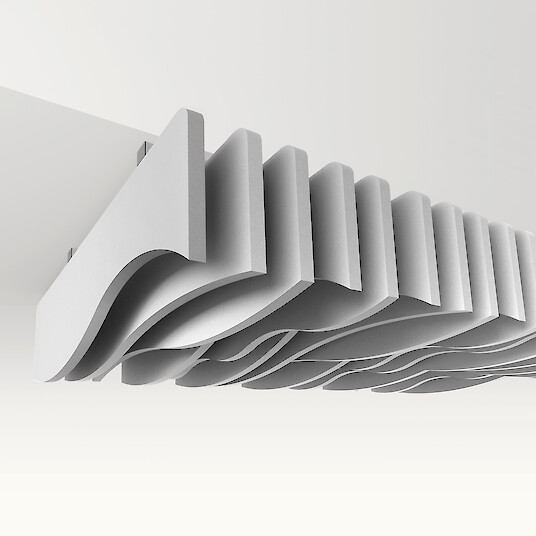

Baffles made of polyester fleece for a wide frequency spectrum to reduce the reveberation time. Customizable in shape and dimensions: curved, organic, or geometric. Standard Colours: Grey Felt, Antracite Felt. Material classified as flame-retardant. Innovative quick-installation method.

Interration of lighting:
Extruded Aluminum. LED pendant luminaire made of 1.625" wide profile. Direct Only light distribution. Bespoke lengths are possible. Fully enclosed and damp rated.

Optical System:
Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Indirect light with innovative lens technology for wide-angle ceiling illumination.

Finish:
Surface natural anodized or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.

Control:
Integral electronic driver dimmable 0–10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.

LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally Full spectrum LEDs for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. From 120lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime minimum 50,000 hours with 85% of lumen maintenance.

Installation:
Height-adjustable single suspension with transparent power supply cable. Canopy finish matches luminaire housing to luminaire body.

Certification:
cETLus.
5-year limited warranty.
