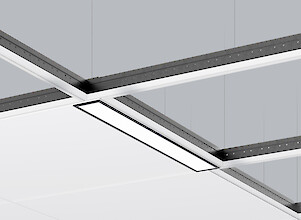

Recessed mounted LED luminaire with frame for installation in ceilings with cut-out openings
Housing:
Extruded Aluminum. Direct only light distribution. Optic width 2.125". Bespoke lengths possible. Fully enclosed and damp rated.
Optical System:
Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces.
Surface Finish:
Surface natural anodized or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus. 5 Years Warranty.
Product adjustments
90° Corner Opal/Microprismatic
Multisensor
Snow White
Natural Anodised
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Sustainability Plus Collection
In our Sustainability Plus Collection, we place a special focus on the sustainability of both the powder coatings and the production process. With the help of three fully automated production lines, we completely recover the powder coatings, use electric ovens powered by solar energy and minimise curing times.-
Snow White
-
Radiant Silver
-
Jet Black
-
Natural Anodised
-
-
Deep Matte Collection
For our Deep Matte Collection, we have carefully selected a range of surfaces with an outstanding deep matt and velvety elegance, ensuring a subtle and high-quality integration into the room architecture.-
Ivory White
-
Anodic Silver
-
Stone Grey
-
Urban Graphite
-
Anodic Bronze
-
Matte Terra
-
Medium Brass
-
Anodic Champagne
-
-
Satin Collection
Our Satin Collection impresses with its inimitable satin finish, excellent depth of colour and a subtle, fine sheen achieved through a special two-stage process. This collection offers top-class surfaces that bring the light to life.-
Satin Silver
-
Satin Taupe
-
Satin Cloud
-
Satin Gold
-
Satin Pale Gold
-
Satin Ivy Green
-
Satin Copper
-
Satin Cipria
-
Satin Bronze
-
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| 1LF3GED-830M-L1198 | Matric-F3 | L=47,2'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | 1403lm | 19W | |
| 1LF3GED-830M-L1490 | Matric-F3 | L=58,7'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | 1758lm | 23W | |
| 1LF3GED-830M-L1780 | Matric-F3 | L=70,1'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | 2104lm | 28W | |
| 1LF3GED-830M-L905 | Matric-F3 | L=35,6'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | 1057lm | 15W | |
| 1LF3GED-835M-L1198 | Matric-F3 | L=47,2'' | Wall-Washer | Silver Anodised | 3500K | Dimmable (0-10V) | 1500lm | 19W | |
| 1LF3GED-835M-L1490 | Matric-F3 | L=58,7'' | Wall-Washer | Silver Anodised | 3500K | Dimmable (0-10V) | 1880lm | 23W | |
| 1LF3GED-835M-L1780 | Matric-F3 | L=70,1'' | Wall-Washer | Silver Anodised | 3500K | Dimmable (0-10V) | 2250lm | 28W | |
| 1LF3GED-835M-L905 | Matric-F3 | L=35,6'' | Wall-Washer | Silver Anodised | 3500K | Dimmable (0-10V) | 1130lm | 15W | |
| 1LF3GED-840M-L1198 | Matric-F3 | L=47,2'' | Wall-Washer | Silver Anodised | 4000K | Dimmable (0-10V) | 1500lm | 19W | |
| 1LF3GED-840M-L1490 | Matric-F3 | L=58,7'' | Wall-Washer | Silver Anodised | 4000K | Dimmable (0-10V) | 1880lm | 23W |
