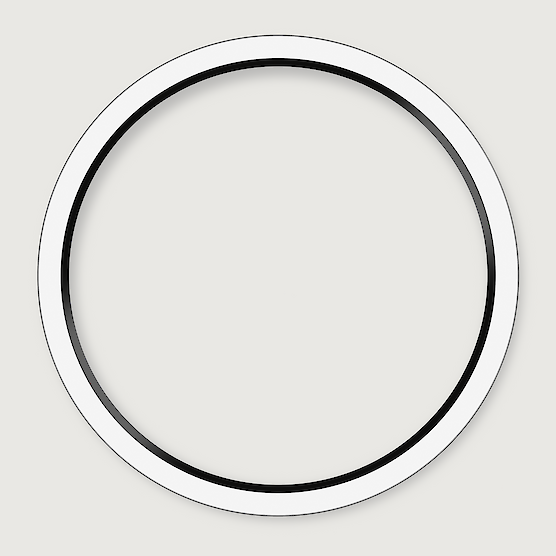

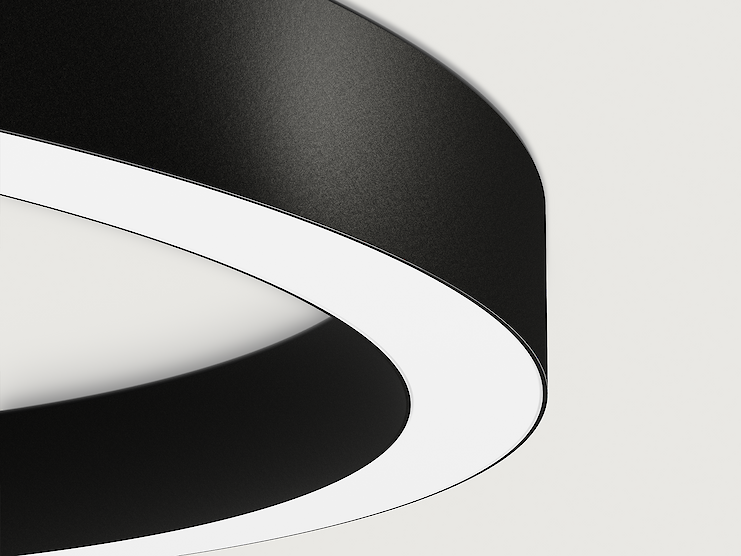

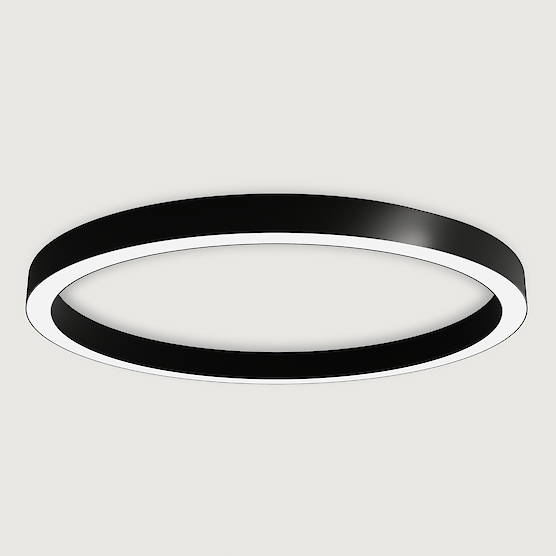

Ringo Star A3 | System 60mm Surface

LED surface-mounted luminaire. Direct only light distribution. Luminaire body made of 60mm wide aluminium profile. 13 different diameters from 600mm to 8000mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.

Product adjustments

Midpin Spotlight XP 770lm/10W/Ø40mm

Snow White

Radiant Silver

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Luminous Flux Power consumption
RA3ASE-840E-D3000 Ringo Star-A3 D=3000mm Microprismatic screen Radiant Silver 4000K Switchable 11240lm 138W
RA3AWE-840E-D3000 Ringo Star-A3 D=3000mm Microprismatic screen Snow White 4000K Switchable 11240lm 138W
RA3OSE-830E-D2500 Ringo Star-A3 D=2500mm Opal diffuser Radiant Silver 3000K Switchable 9266lm 114W
RA3OWE-830E-D2500 Ringo Star-A3 D=2500mm Opal diffuser Snow White 3000K Switchable 9266lm 114W
RA3ASE-827E-D7000 Ringo Star-A3 D=7000mm Microprismatic screen Radiant Silver 2700K Switchable 23656lm 308W
RA3AWL-830E-D1500 Ringo Star-A3 D=1500mm Microprismatic screen Snow White 3000K Dimmable (DALI) 5255lm 69W
RA3ABE-827E-D7000 Ringo Star-A3 D=7000mm Microprismatic screen Jet Black 2700K Switchable 23656lm 308W
RA3ASL-830E-D1500 Ringo Star-A3 D=1500mm Microprismatic screen Radiant Silver 3000K Dimmable (DALI) 5255lm 69W
RA3ASE-827E-D1500 Ringo Star-A3 D=1500mm Microprismatic screen Radiant Silver 2700K Switchable 5255lm 69W
RA3OWE-840E-D6000 Ringo Star-A3 D=6000mm Opal diffuser Snow White 4000K Switchable 24400lm 276W
