Midpin C2/C3 | 48V Track

Uncompromising quality of light

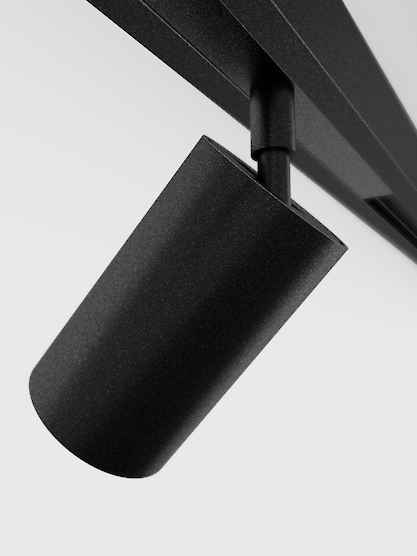

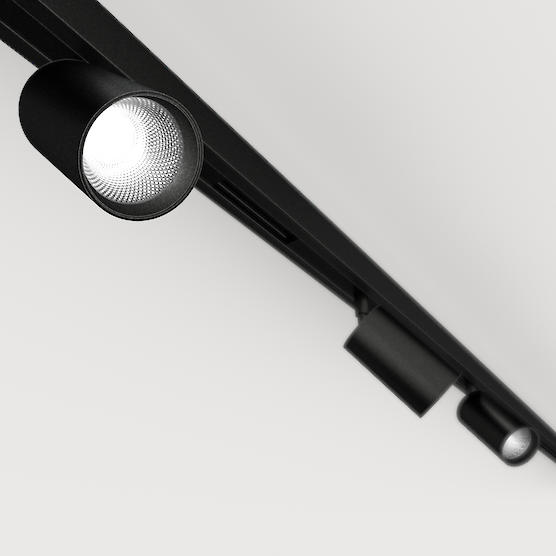

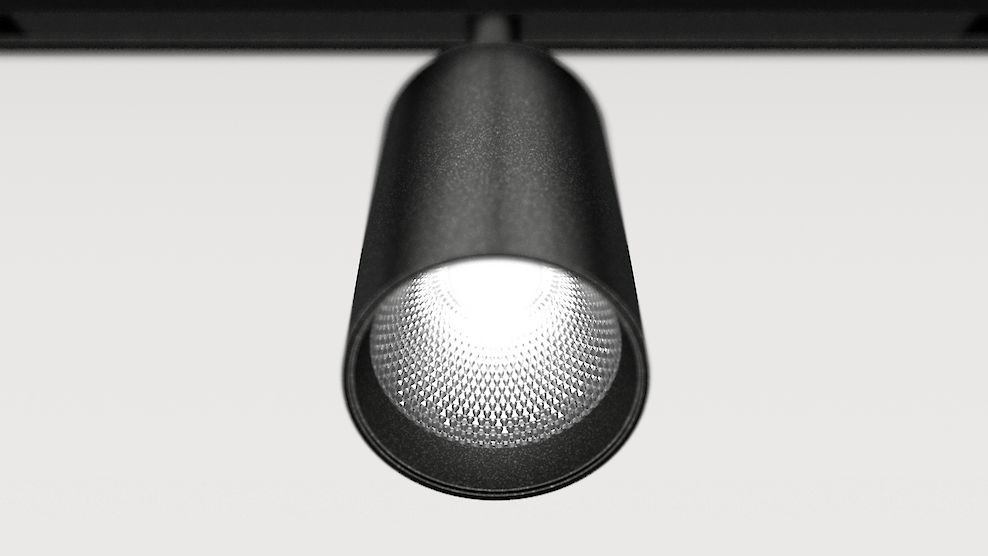

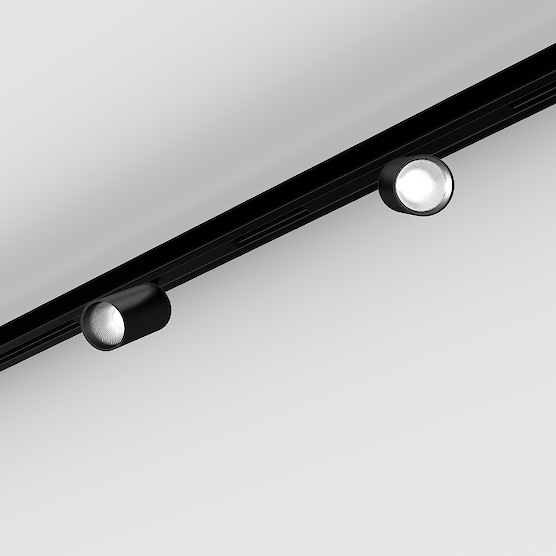

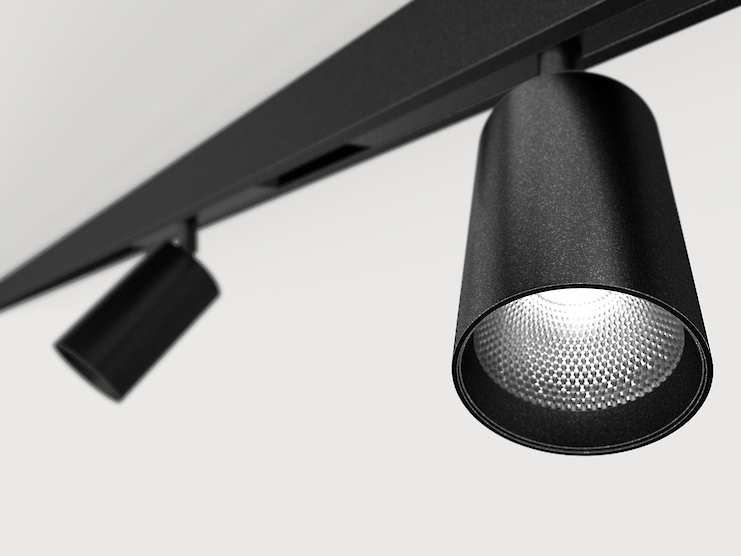

LED spotlight for 48V tracks. Type C2: 350° rotation and 90° tilt. Type C3: Pendant version, direct only light distribution. Housing made of white, silver, black or champagne coated aluminum. For further colour finishes please see the Lightnet-Surface-Collection or select your RAL of choice. Adapter and inside of track are always black. Colour temperature available as 2700K, 3000K or 4000K or as Dim to Warm 3000K-1800K. Colour rendering CRI>90. Binning≤ MacAdam 3. Changeable lens optics with beam angle 30° (medium) or 40° (flood). Optic ring available in different colour versions. Optionally switchable or dimmable (DALI). Separately orderable: 48V tracks for recessed, surface or pendant mounting with external 48V control gear or Matric light lines (System 40mm) with integrated 48V tracks and control gear. Maximum system flexibility due to extensive standard range of angle connectors and custom-made lengths.

Product adjustments

Jet Black | Snow White

Jet Black | Satin Silver

Jet Black | Jet Black

Jet Black | Satin Gold

Jet Black | Anodic Champagne

Jet Black | Satin Copper

Configuration and data download

Lens Angle

Surface finish

Control

Colour temperature

Current/Power

Reflector Colour Inside

Apply
Filter
Downloads Lens Angle Surface finish Control Colour temperature Current/Power Reflector Colour Inside
Medium 30° Snow White Switchable 3000K Medium-Power Reflector: Jet Black
Medium 30° Jet Black Switchable 4000K Medium-Power Reflector: Jet Black
Flood 40° Snow White Dimmable (DALI) 2700K Medium-Power Reflector: Snow White
Medium 30° Snow White Switchable 3000K Medium-Power Reflector: Snow White
Flood 40° Snow White Switchable 3000K Medium-Power Reflector: Snow White
Medium 30° Snow White Dimmable (DALI) 3000K Medium-Power Reflector: Snow White
Flood 40° Snow White Dimmable (DALI) 3000K Medium-Power Reflector: Snow White
Medium 30° Snow White Switchable 4000K Medium-Power Reflector: Snow White
Flood 40° Snow White Switchable 4000K Medium-Power Reflector: Snow White
Medium 30° Snow White Dimmable (DALI) 4000K Medium-Power Reflector: Snow White
