Matric XY | System 40mm Surface

Modular lines of light

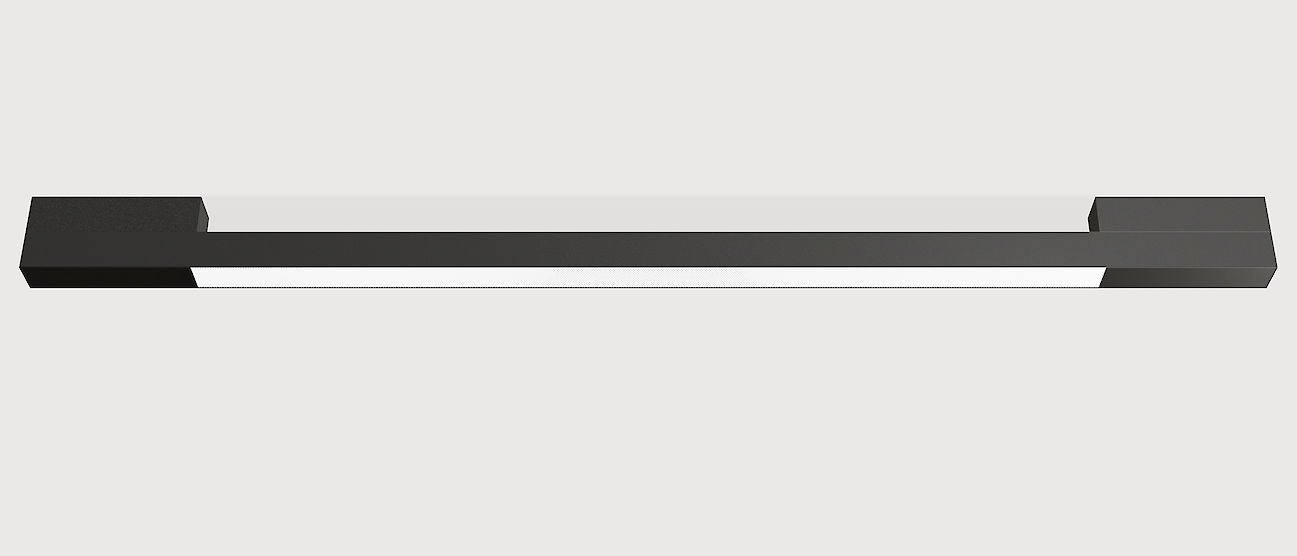

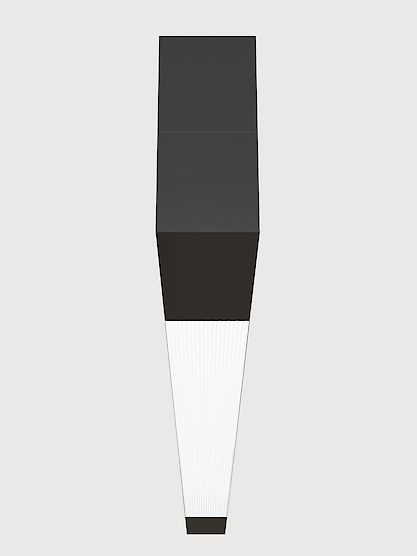

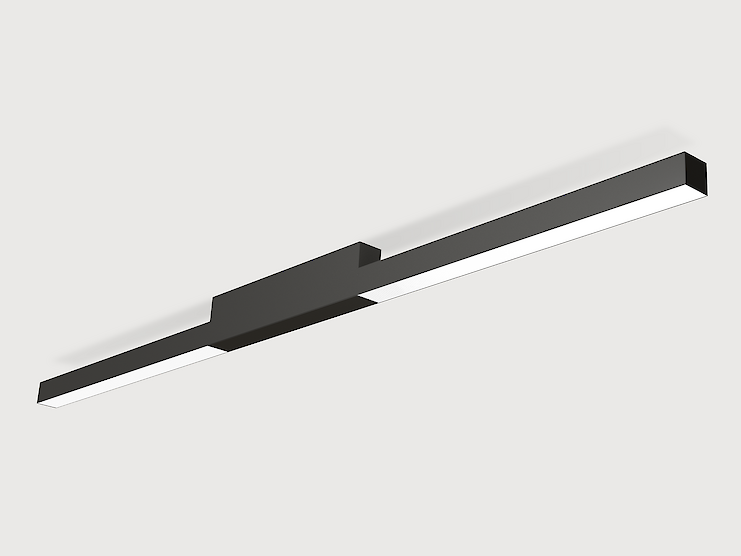

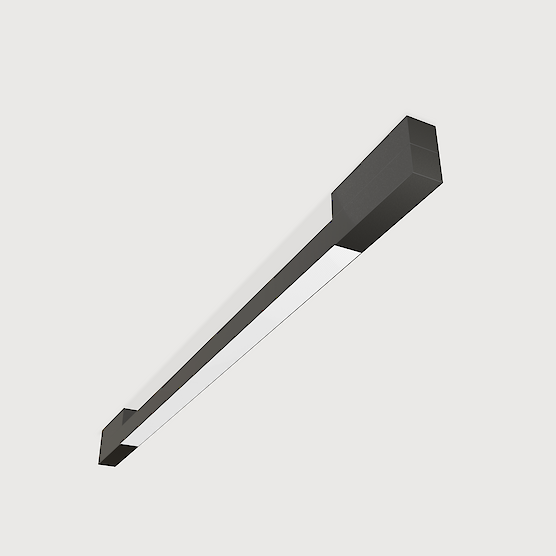

LED surface-mounted luminaire for walls or ceilings. Direct and indirect light distribution. Luminaire body made aluminium profile with 40×40mm cross-section and frontal or central spacers. Bespoke lengths available with some limitions. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Alternatively, microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Driver integrated into luminaire housing behind blind bays, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.

Product adjustments

Snow White | Snow White

Snow White | Satin Silver

Snow White | Jet Black

Snow White | Anodic Champagne

Snow White | Satin Copper

Snow White | Satin Gold

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Reflector Colour Inside

Apply
Filter
Downloads Length L/Diameter D (mm) Light characteristics Optical system Surface finish Colour temperature Control Current/Power Reflector Colour Inside
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 3000K Switchable Medium-Power Reflector: Snow White
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 3000K Switchable Medium-Power Reflector: Jet Black
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 3000K Switchable Medium-Power Reflector: Satin Gold
L=1250mm Direct/indirect light distribution Lens Louvre Silver Anodised 3000K Switchable Medium-Power Reflector: Satin Silver
L=1250mm Direct/indirect light distribution Lens Louvre Jet Black 3000K Switchable Medium-Power Reflector: Jet Black
L=1250mm Direct/indirect light distribution Lens Louvre Jet Black 3000K Switchable Medium-Power Reflector: Satin Gold
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 4000K Switchable Medium-Power Reflector: Snow White
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 4000K Switchable Medium-Power Reflector: Jet Black
L=1250mm Direct/indirect light distribution Lens Louvre Snow White 4000K Switchable Medium-Power Reflector: Satin Gold
L=1250mm Direct/indirect light distribution Lens Louvre Silver Anodised 4000K Switchable Medium-Power Reflector: Satin Silver
