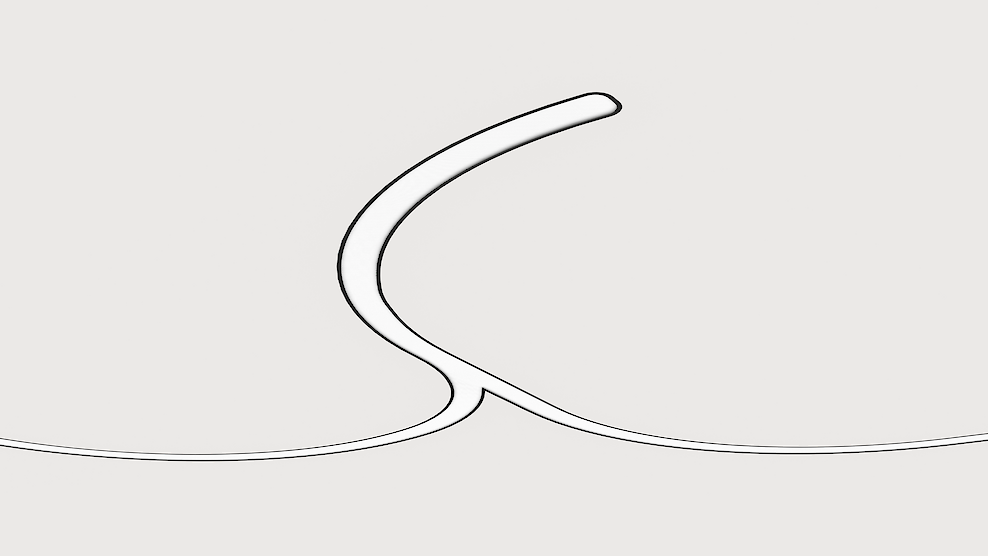

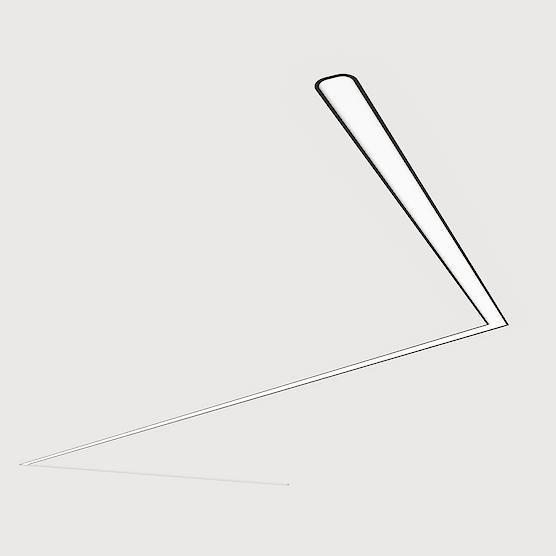

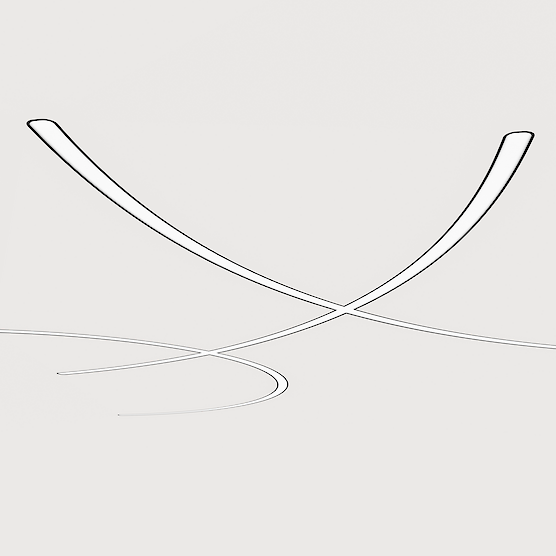

LED recessed light system for installation in ceiling cut-outs openings. Direct only light distribution. Highly flexible system consisting of linear elements, curved elements and Y- and X-connectors. Each module is designed as a stand-alone luminaire with an integrated driver and can be connected to the other modules using a sophisticated connector system to create any desired lighting structure. Millimeter-precise production as well as special curves (Opal only) possible. Based on customer specifications, Lightnet creates technical drawings of the desired structure for review and approval. Luminaire body with smooth bends made of aluminium profile with 60mm optics width, crafted in one piece with no visible seams. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting. Driver optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.
Product adjustments
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|
| QF3AWL-840H-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Snow White | 4000K | Dimmable (DALI) | 2290lm/m | 31W/m | |
| QF3ABE-830M-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Jet Black | 3000K | Switchable | 1646lm/m | 23W/m | |
| QF3AWE-840H-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Snow White | 4000K | Switchable | 2290lm/m | 31W/m | |
| QF3AWE-830H-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Snow White | 3000K | Switchable | 2141lm/m | 31W/m | |
| QF3AWL-830E-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | 1122lm/m | 15W/m | |
| QF3OBE-830H-STRUCTURE-Lxxxx | Liquid Line-F3 | Opal diffuser | Jet Black | 3000K | Switchable | 2319lm/m | 30W/m | |
| QF3ABE-830E-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Jet Black | 3000K | Switchable | 1122lm/m | 15W/m | |
| QF3ABE-830H-STRUCTURE-Lxxxx | Liquid Line-F3 | Microprismatic screen | Jet Black | 3000K | Switchable | 2141lm/m | 31W/m | |
| QF3OSL-840M-STRUCTURE-Lxxxx | Liquid Line-F3 | Opal diffuser | Radiant Silver | 4000K | Dimmable (DALI) | 1910lm/m | 23W/m | |
| QF3OWL-830E-STRUCTURE-Lxxxx | Liquid Line-F3 | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | 1216lm/m | 15W/m |
