Cubic Evolution G4/P4 | 200mm Suspended

Geometric, puristic, timeless

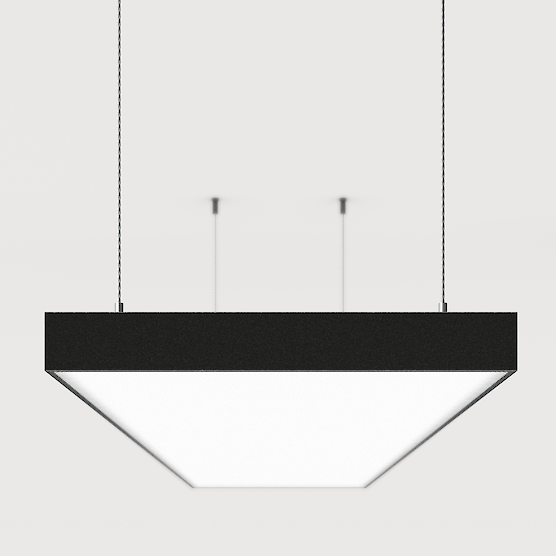

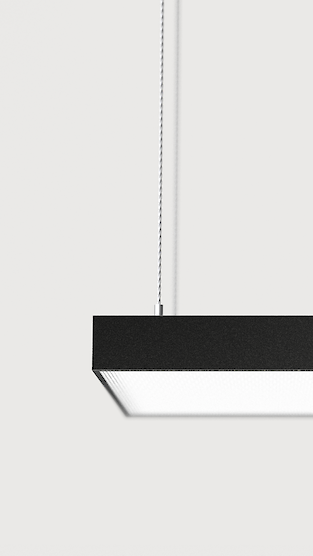

LED pendant luminaire. Direct-indirect or direct-only light distribution. Luminaire body with minimalistic overall height made of aluminium profile. Surface natural anodised or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable parallel or Y-cord suspension with transparent power supply cable or rod suspension. Colour of ceiling rose matching luminaire body. On request: Integration of emergency lighting components, sensor technology.

Product adjustments

Multisensor

Emergency Module

Snow White

Silver Anodised

Urban Graphite

Jet Black

Anodic Champagne

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Suspension

Apply
Filter
Downloads Length L/Diameter D (mm) Light characteristics Optical system Surface finish Colour temperature Control Current/Power Suspension
L=900mm Direct/indirect light distribution Microprismatic screen Snow White 3000K Switchable Medium-Power Y-susp. (Set)
L=1200mm Direct/indirect light distribution Microprismatic screen Snow White 3000K Switchable Medium-Power Y-susp. (Set)
L=1500mm Direct/indirect light distribution Microprismatic screen Snow White 3000K Switchable Medium-Power Y-susp. (Set)
L=900mm Direct/indirect light distribution Microprismatic screen Silver Anodised 3000K Switchable Medium-Power Y-susp. (Set)
L=1200mm Direct/indirect light distribution Microprismatic screen Silver Anodised 3000K Switchable Medium-Power Y-susp. (Set)
L=1500mm Direct/indirect light distribution Microprismatic screen Silver Anodised 3000K Switchable Medium-Power Y-susp. (Set)
L=900mm Direct/indirect light distribution Microprismatic screen Jet Black 3000K Switchable Medium-Power Y-susp. (Set)
L=1200mm Direct/indirect light distribution Microprismatic screen Jet Black 3000K Switchable Medium-Power Y-susp. (Set)
L=1500mm Direct/indirect light distribution Microprismatic screen Jet Black 3000K Switchable Medium-Power Y-susp. (Set)
L=900mm Direct/indirect light distribution Microprismatic screen Snow White 3000K Dimmable (DALI) Medium-Power Y-susp. (Set)
