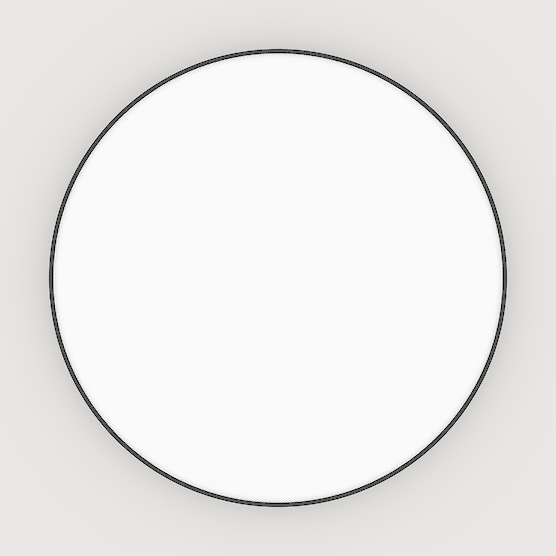

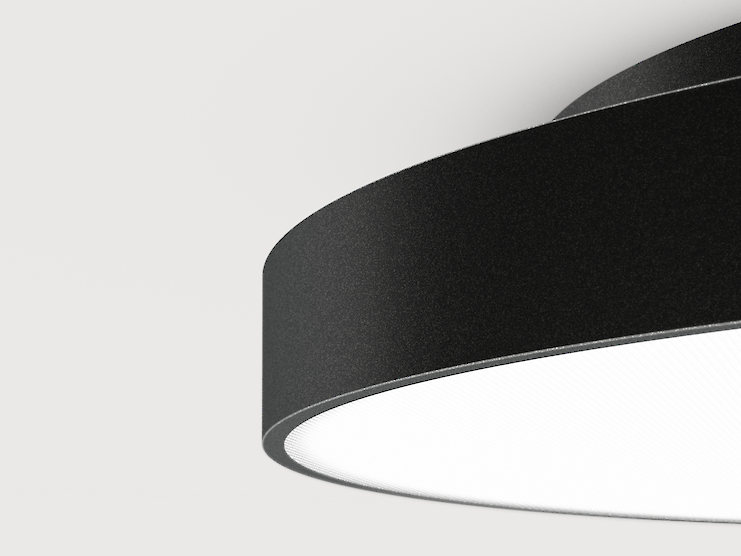

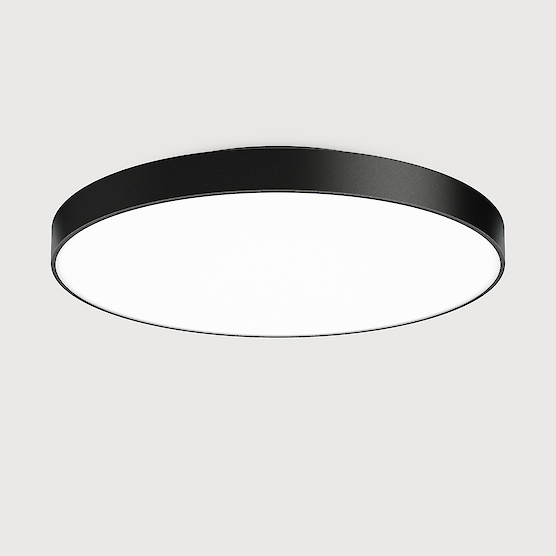

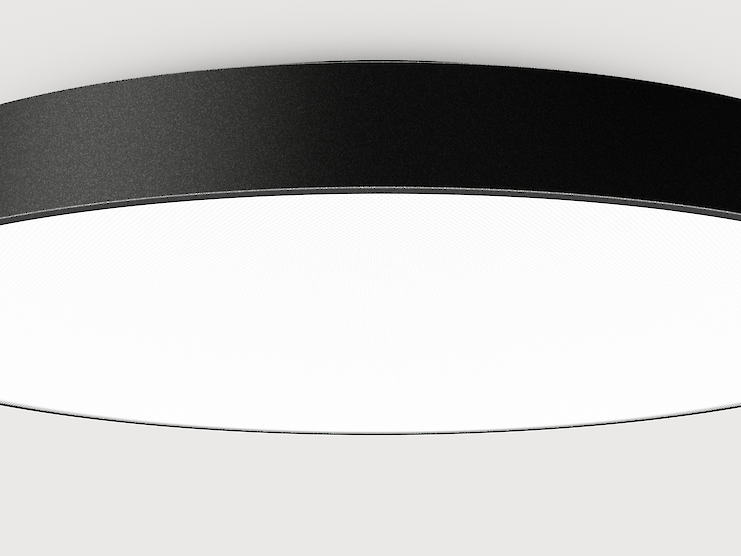

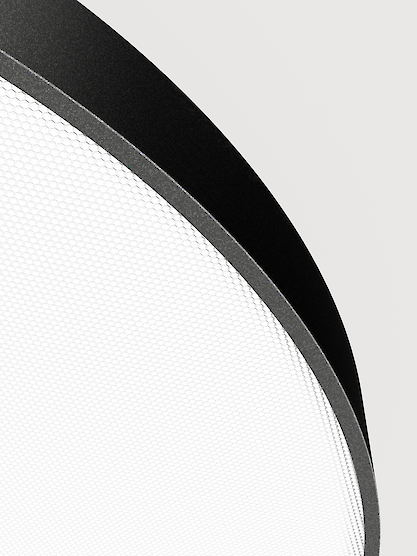

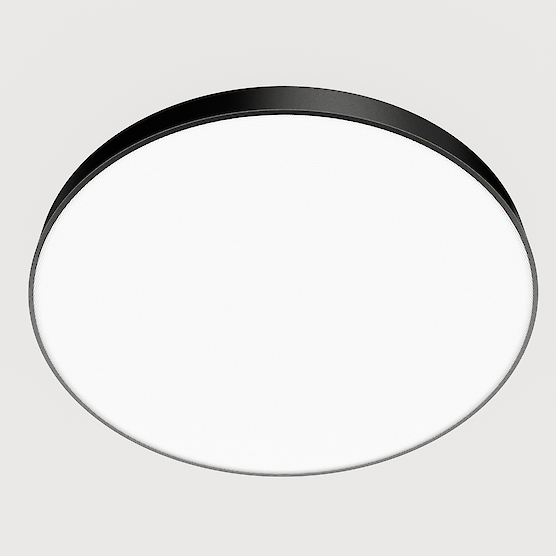

LED surface-mounted luminaire for walls or ceilings. Direct light distribution and indirect lighting corona or direct only light distribution. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700- 6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components.
Product adjustments
Emergency Module
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| BX5AWL-830M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | 7134lm | 60W | |
| BX5ASL-830M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | 7134lm | 60W | |
| BX5ABL-830M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | 7134lm | 60W | |
| BX5OWL-830M-D800 | Basic-X5 | D=800mm | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | 7246lm | 60W | |
| BX5OSL-830M-D800 | Basic-X5 | D=800mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | 7246lm | 60W | |
| BX5OBL-830M-D800 | Basic-X5 | D=800mm | Opal diffuser | Jet Black | 3000K | Dimmable (DALI) | 7246lm | 60W | |
| BX5AWE-840M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Snow White | 4000K | Switchable | 7630lm | 60W | |
| BX5ASE-840M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Radiant Silver | 4000K | Switchable | 7630lm | 60W | |
| BX5ABE-840M-D800 | Basic-X5 | D=800mm | Microprismatic screen | Jet Black | 4000K | Switchable | 7630lm | 60W | |
| BX5OWE-840M-D800 | Basic-X5 | D=800mm | Opal diffuser | Snow White | 4000K | Switchable | 7750lm | 60W |
