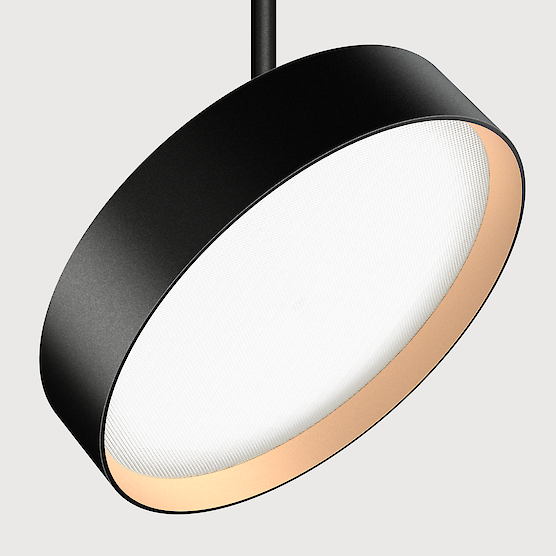

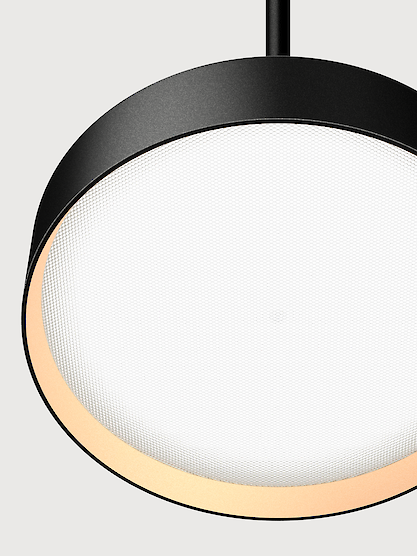

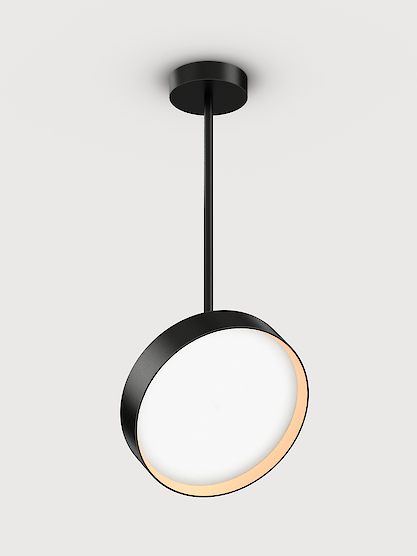

Basic Déco O3 | Suspended

LED spotlight for pendant mounting. 350° rotation and 90° tilt. Luminaire body made of aluminium profile with overall height of 58mm. Outer housing and Decorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.

Product adjustments

Snow White | Snow White

Radiant Silver | Radiant Silver

Urban Graphite | Urban Graphite

Jet Black | Jet Black

Anodic Champagne | Anodic Champagne

Satin Copper | Satin Copper

Snow White | Satin Copper

Snow White | Satin Gold

Snow White | Jet Black

Anodic Champagne | Jet Black

Jet Black | Satin Gold

Jet Black | Snow White

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Suspension

Reflector Colour Inside

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Suspension Reflector Colour Inside Luminous Flux Power consumption
BO3OBE-840M-D500-PG Basic-O3 D=500mm Opal diffuser Jet Black 4000K Switchable Rod susp. (Set) Reflector: Satin Gold 2390lm 21W
BO3OWL-840M-D500-PW Basic-O3 D=500mm Opal diffuser Snow White 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Snow White 2390lm 21W
BO3OWL-840M-D500-PG Basic-O3 D=500mm Opal diffuser Snow White 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Satin Gold 2390lm 21W
BO3OWL-840M-D500-PB Basic-O3 D=500mm Opal diffuser Snow White 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Jet Black 2390lm 21W
BO3OSL-840M-D500-PS Basic-O3 D=500mm Opal diffuser Radiant Silver 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Radiant Silver 2390lm 21W
BO3OBL-840M-D500-PB Basic-O3 D=500mm Opal diffuser Jet Black 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Jet Black 2390lm 21W
BO3OBL-840M-D500-PG Basic-O3 D=500mm Opal diffuser Jet Black 4000K Dimmable (DALI) Rod susp. (Set) Reflector: Satin Gold 2390lm 21W
BO3OWE-830H-D500-PW Basic-O3 D=500mm Opal diffuser Snow White 3000K Switchable Rod susp. (Set) Reflector: Snow White 3777lm 35W
BO3OWE-830H-D500-PG Basic-O3 D=500mm Opal diffuser Snow White 3000K Switchable Rod susp. (Set) Reflector: Satin Gold 3777lm 35W
BO3OWE-830H-D500-PB Basic-O3 D=500mm Opal diffuser Snow White 3000K Switchable Rod susp. (Set) Reflector: Jet Black 3777lm 35W
